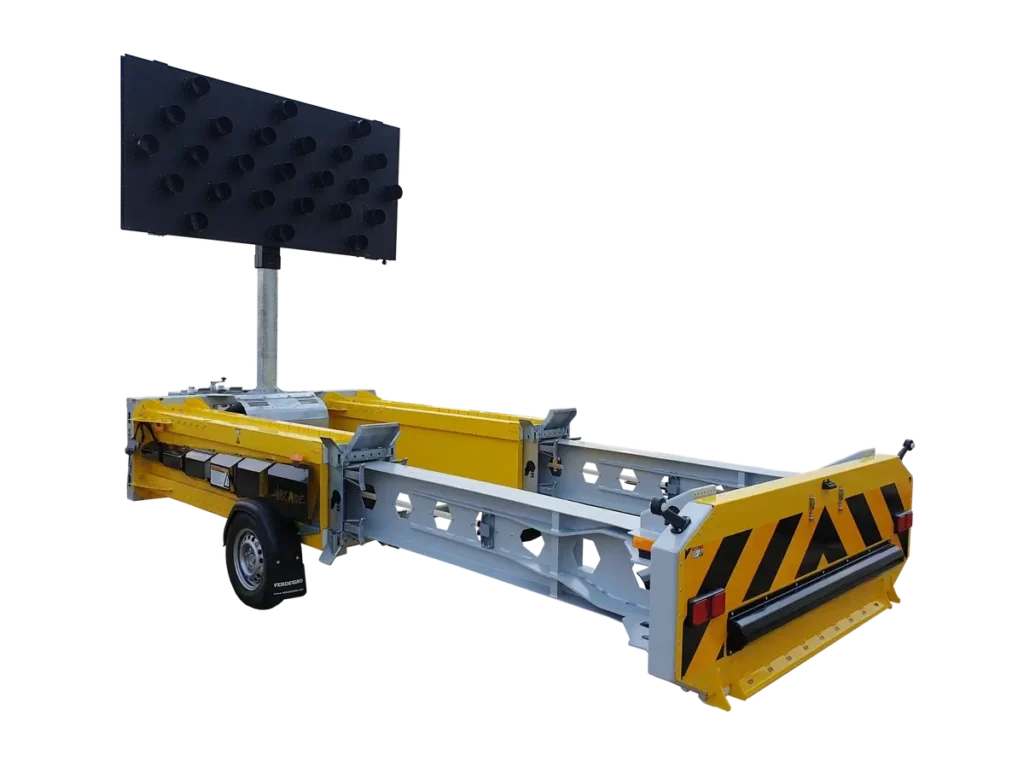

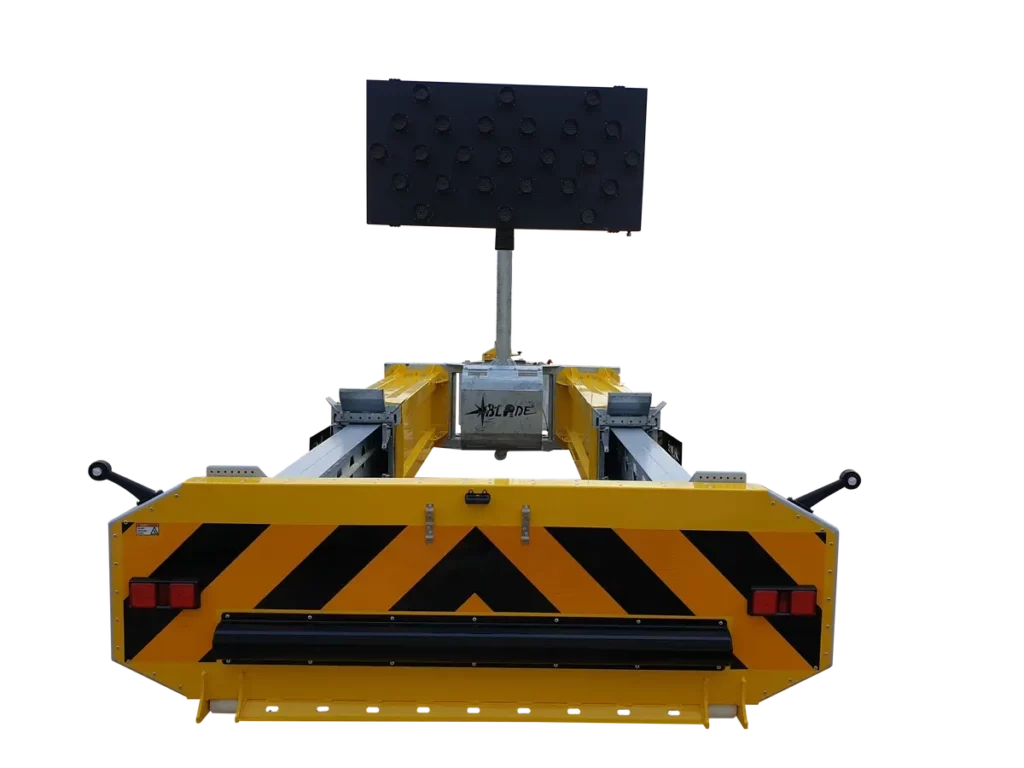

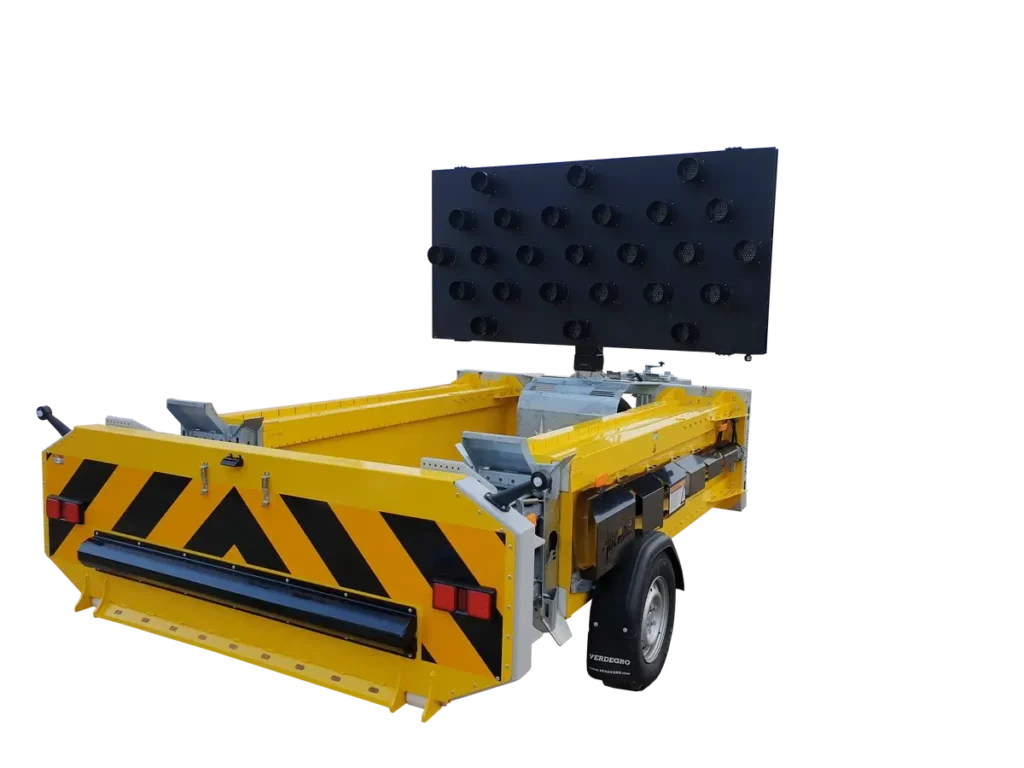

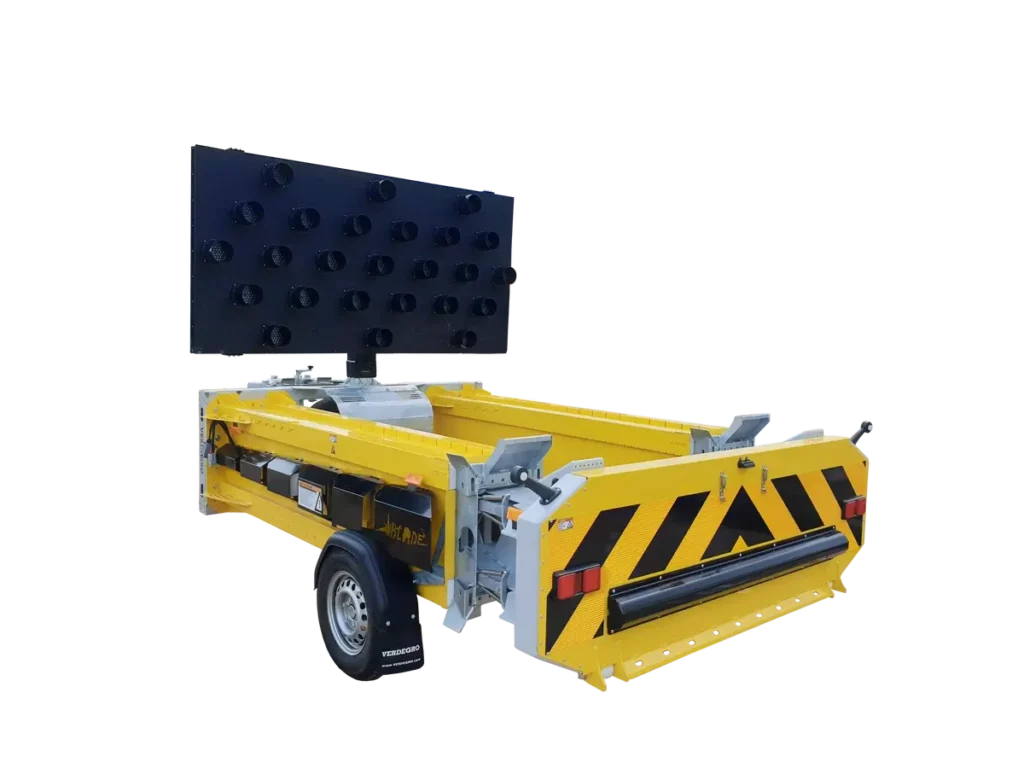

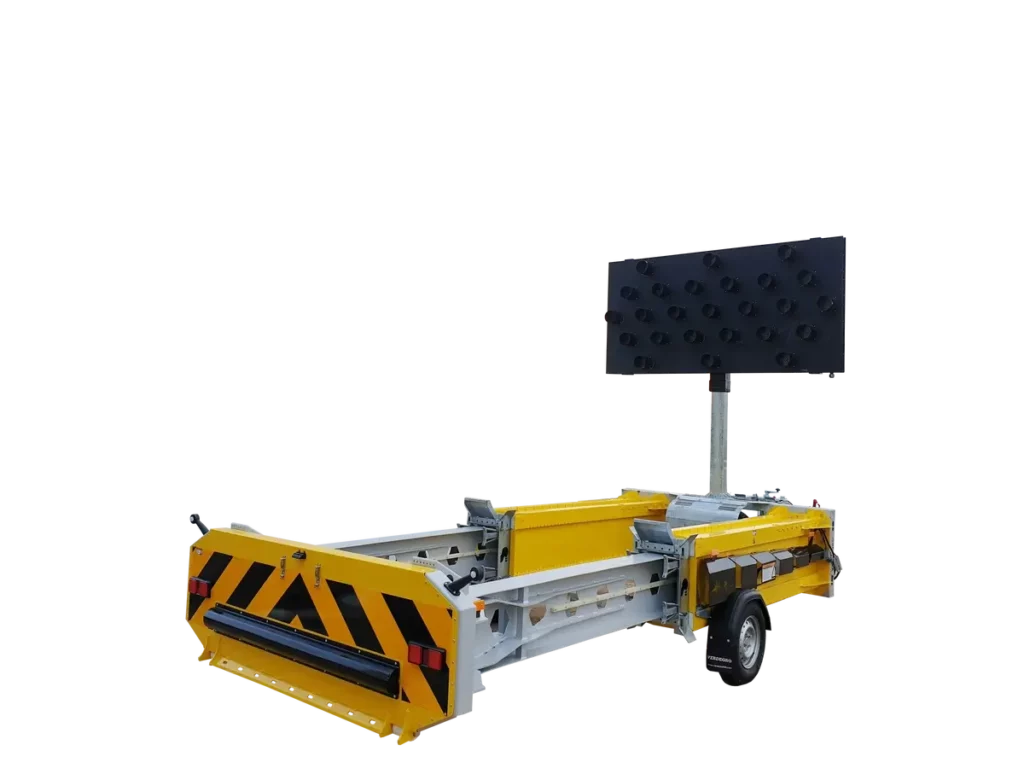

Blade – Trailer Truck Mounted Attenuator (MASH)
The BLADE – Trailer Truck Mounted Attenuator (MASH) is designed as an energy-absorbing trailer affixed to the rear of a truck, also referred to as a truck-mounted crash cushion or utility vehicle.

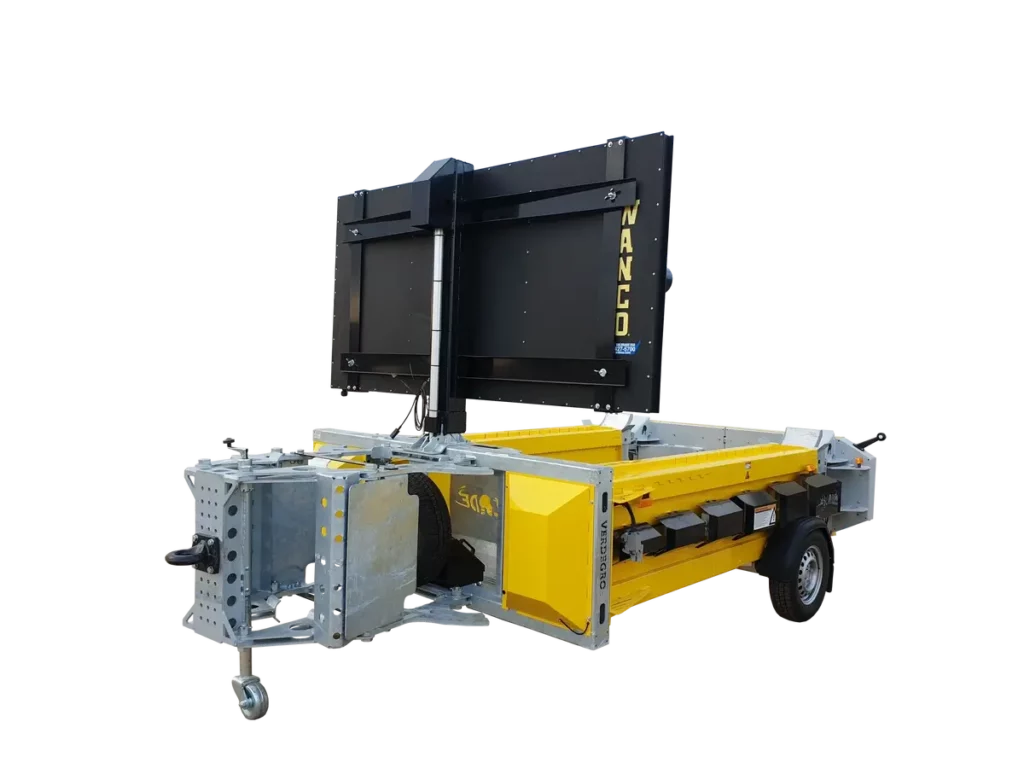

When attached to a truck, the frame assembly collapses upon impact from an errant vehicle. The Verdegro BLADE-TTMA (MASH) ensures quick and effortless attachment/detachment using a jockey wheel mechanism.
UNIQUE SELLING POINTS
- Full-scale crash tested and MASH 2016 TL-3 approved
- Standard 15-meter wired cabin controller operation
- Four electric actuators and gearbox motors
- Fully automated retractable version
TECHNICAL SPECIFICATIONS
- Full-scale crash tested and approved according to MASH 2016 TL-3 (3-50, 3-51, 3-52, 3-53, and optional 3-54).
- Standard operation from truck with 15-meter wired cabin controller.
- Equipped with a 175 Amps plug for powering the entire system from vehicle 12Vdc or 24Vdc.
- Includes 4 electric actuators, 4 electric gearbox motors, and LED driving lights.
- Fully automated retractable version.
- Galvanized steel structure.
- Aluminum crash cushion can be painted in any desired RAL color(s).
- Delivered with test certifications and CE marking.
- EMC compliant.
![blade ttma mash table of contents](https://verdegro.com/wp-content/uploads/2024/07/blade-ttma-mash-table-of-contents-1-1024x462.png)
MASH TESTED, PASSED, FHWA ELIGIBLE AND DOT APPROVED
Options:
- Electrically raised arrow board frame
- Chevrons or reflective foil
