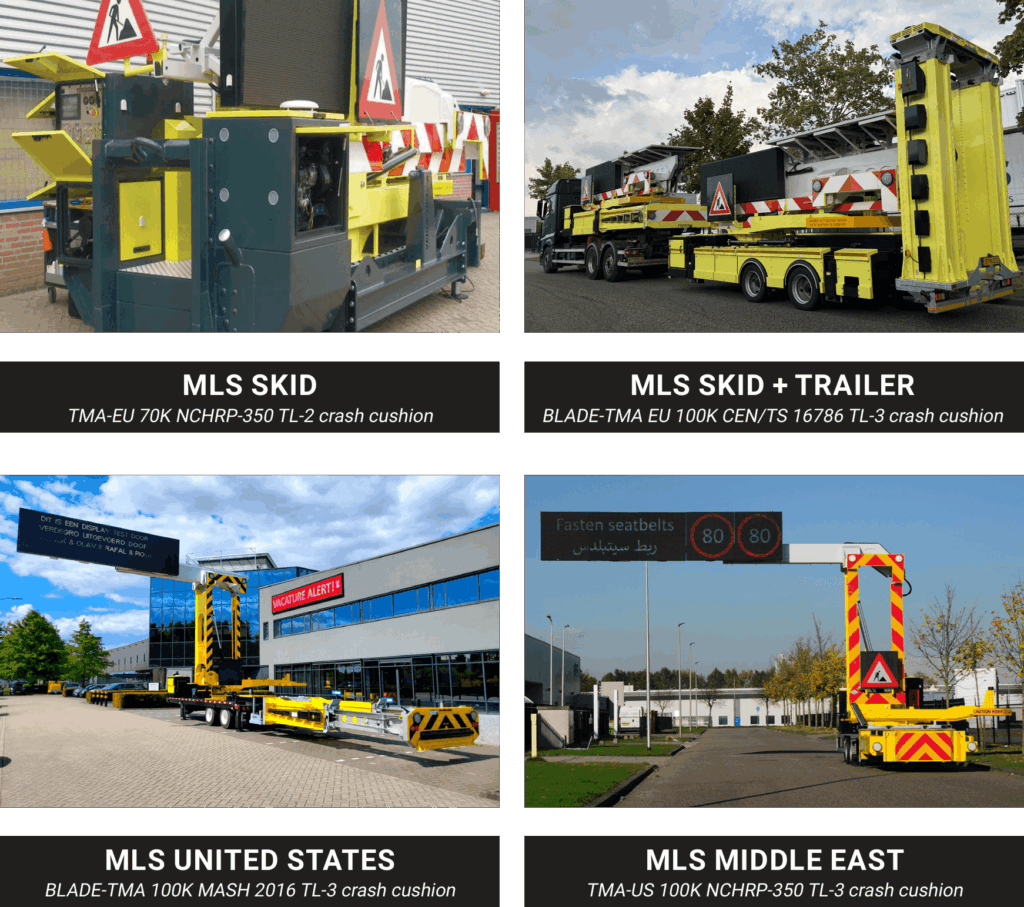

Mobile Lane Signaling System (MLS)
The Verdegro MLS is a unique innovative machine that can be used as a MLS (Mobile Lane Signaling) or MRI (Mobile Route Information) system. This system designed by Verdegro can be used for many purposes.
UNIQUE SELLING POINTS
- Heavy-duty skid and trailer with a total weight of 12,000 kg and load capacity of 10,000 kg per axle.
- Quick setup time of under 4 minutes, ensuring minimal disruption and rapid deployment.
- Equipped with Verdegro NCHRP 350 TL2 crash absorber, providing enhanced road safety.
- Hydraulically extendable 3-piece horizontal arm for precise positioning of signal generators above desired lanes.
TECHNICAL SPECIFICATIONS
SKID:
- Length: 6,815 mm
- Width: 2,340 mm
- Height: 2,710 mm
- Total weight: 12,000 kg / 26,455 lbs
- Preservation: Blasting and coating in prescribed MLS colors
TRAILER:
- Special two-axis center trailer
- Length: 6,800 mm (excluding drawbar)
- Width: 2,350 mm
- Ground clearance: 200 mm
- Heavy base frame with lowered front and rear axles
- Total: 8 wheels and 1 spare wheel
- 2 air suspension axles, load capacity: 10,000 kg / 22,046 lbs each
- Preservation: Blasting and coating
- Height-adjustable drawbar
EXTRA INFORMATION
Additional details about the skid and trailer chassis include a specialized lifting and tilting mechanism designed for the MLS structure. The mast or boom utilizes two rams and rods positioned vertically and horizontally, mounted on a turntable with a hydraulic cylinder capable of rotating 90 degrees above ground. A three-piece horizontal arm extends hydraulically to position the three signal generators above desired lanes. Positioned at the rear of the chassis is the crash absorber. The setup and takedown process for these components can be completed within a maximum time frame of 4 minutes.
OPTIONAL
- Four-lane system with a 4th mast/signal matrix that is partly hydraulic and manually retractable.
- 100 km/h crash cushion mounted on the trailer unit.
TECHNICAL INFORMATION
POWER / HYDRAULIC SYSTEM:
The power and hydraulic systems of the Mobile Lane Signaling (MLS) unit feature integrated lockable enclosures housing both the generator and hydraulic unit, accessible behind secure doors. Driving these systems is a 2-cylinder water-cooled diesel engine, equipped with an increased sump for sustained operation. The MLS operates autonomously, maintaining noise levels outside the unit below 65 dBA for a minimum of two weeks. A fuel tank with level measurement and metering capability is located within a secure control compartment, allowing front-access refueling. Additionally, an emergency battery pack ensures the MLS can operate autonomously for at least 24 hours in case of power failure or emergency situations.
LED DISPLAY / VMS:
The LED displays or Variable Message Signs (VMS) feature cutting-edge technology compliant with EN 12966 standards, offering a resolution of 48×48 pixels with a 20mm pixel pitch. Each display cabinet measures 1024 x 1024 x 150 mm (HxWxD) and is mounted on the installation’s boom. They are serviced via two rear-hinged doors. Energy and wiring are efficiently routed through cable guides within the mast and boom structure. Sounders beneath the displays are equipped with sturdy symbols for clear visibility and communication.
