Verdegro Mini Arrow Board (LP15)
Introducing the Verdegro Mini Arrow Board (LP15), designed to complement the Verdegro Light Truck Mounted Attenuator (LTMA 70K). Equipped with 15 amber-colored Verdegro 200mm LED lights, it features a unique multi-voltage standard 12 Vdc and optional 24 Vdc flash controller adaptable for various arrow board configurations.

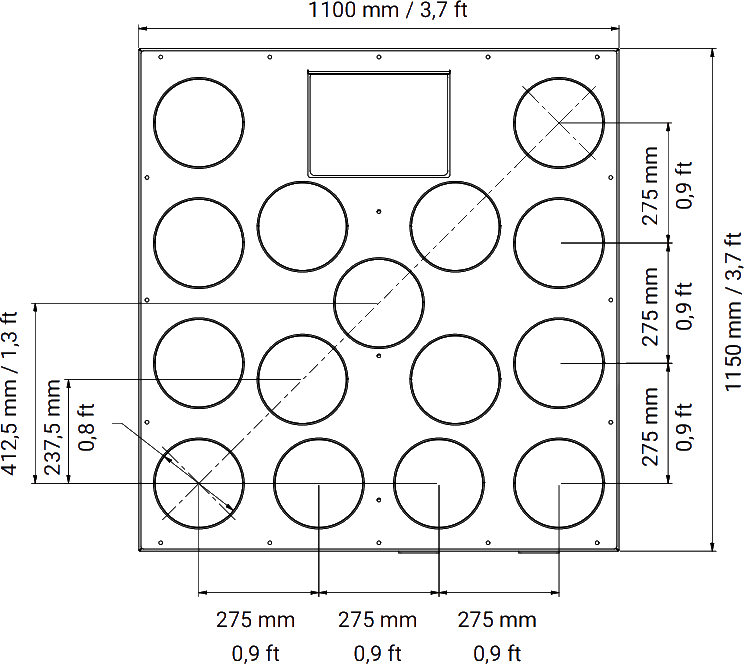

DIMENSIONS AND WEIGHT
WIDTH
1100 mm
3.6 ft
HEIGHT
1150 mm
3.8 ft
Weight
Approx. 50 kg / 110 lbs
THE LP15: MINI ARROW BOARD
Introducing the Verdegro Mini Arrow Board (LP15), a compact and efficient signaling solution designed to perfectly complement the Verdegro Light Truck Mounted Attenuator (LTMA 70K). With its lightweight construction and robust performance, the LP15 enhances visibility and safety in any work zone.
Measuring 1100 mm / 3,6 ft in width and 1150 mm / 3,8 ft in height, and weighing just 50 kg / 110 lbs, this mini arrow board combines portability with strength. Despite its compact size, it delivers powerful, clear signaling to guide and protect both workers and road users.
The LP15 is easy to operate and can be tailored to your specific needs. Optional features include programmable settings and an advanced f lash controller that allows direct connection of work lights to the PCB board. For optimal convenience, the system can be integrated with a combined TMA and LP15 (wired) cabin controller, equipped with extra function buttons for complete and effortless control.
Technical Specifications

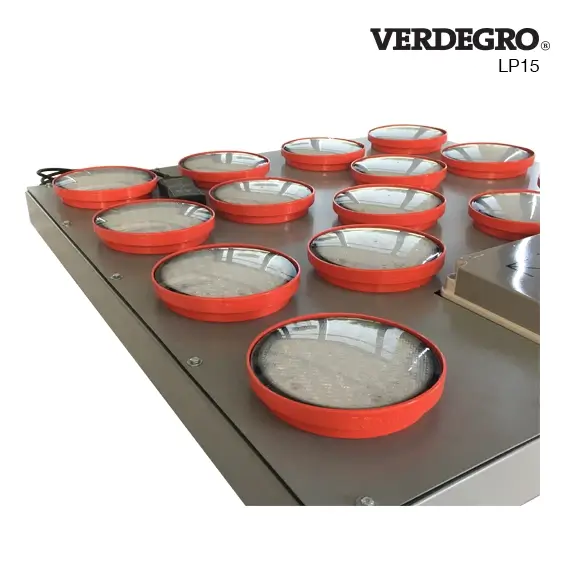

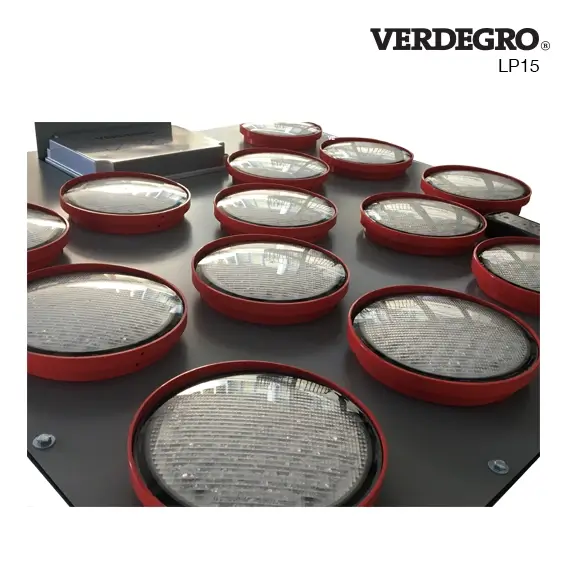

- Equipped with 15 amber Verdegro 200mm LED lights, EN12352:2006 + AC:2009 (L8M), 24 Vdc, 290 mA, 7 W
- Weather protection: IP65 rated
- Fully aluminium cabinet, painted in aircraft grey (BS 693)
- Unique multi-voltage 12 Vdc (standard) or 24 Vdc V flash controller suitable for all arrow board configurations
- Standard functions LP15: Arrow Left, Arrow Right, Cross, and Four-Fold (warning) function

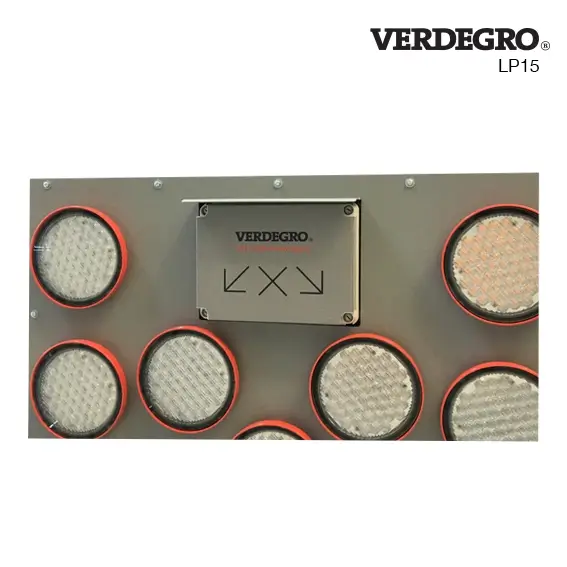

- Easy access flash controller cabinet, mounted on the front

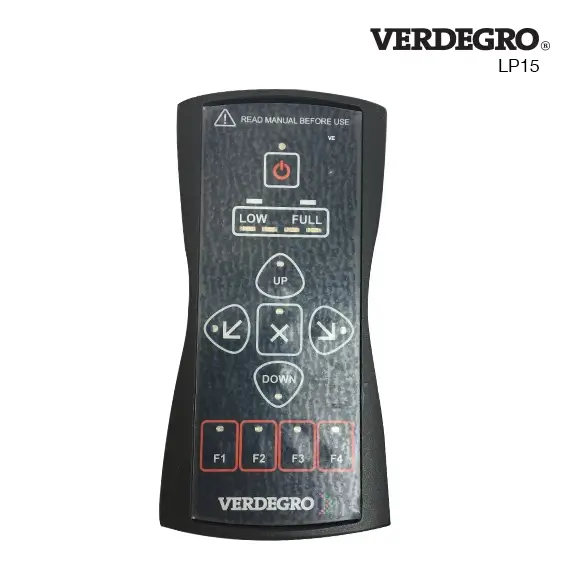

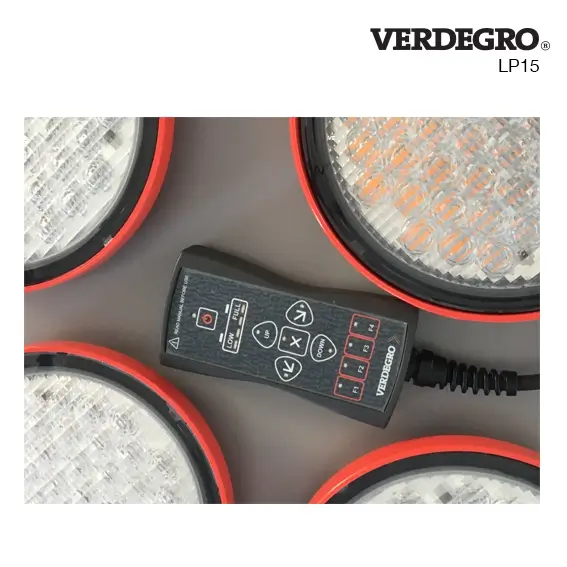

- Supplied with a 4-button wired cabin controller as standard
- Easy to install using the integrated mounting frame
- Including instruction manual and CE marking
- High European quality
