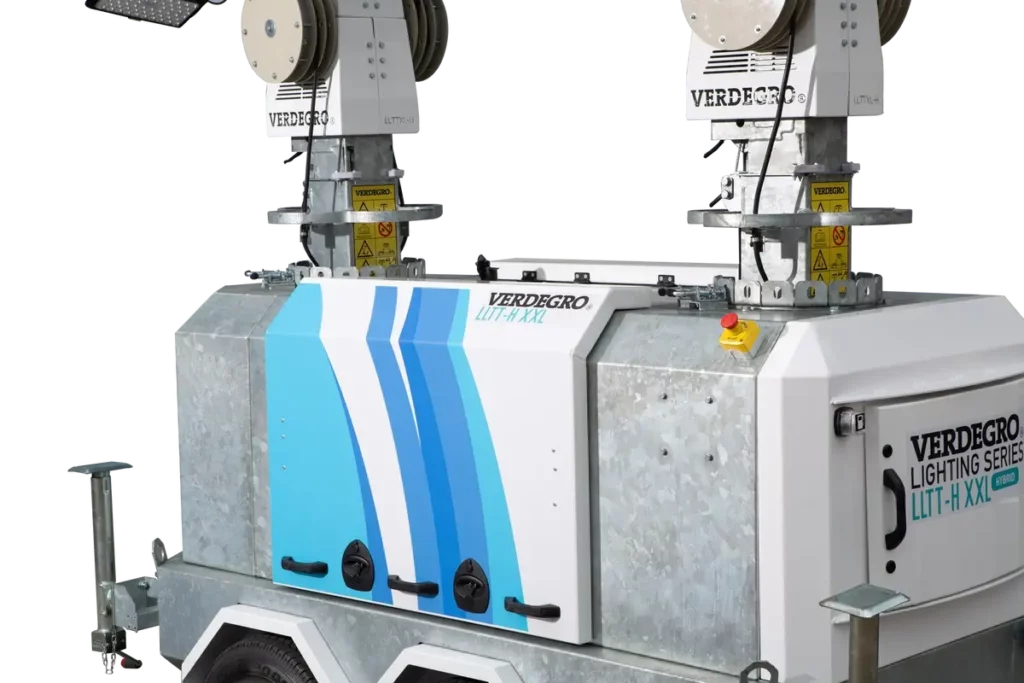

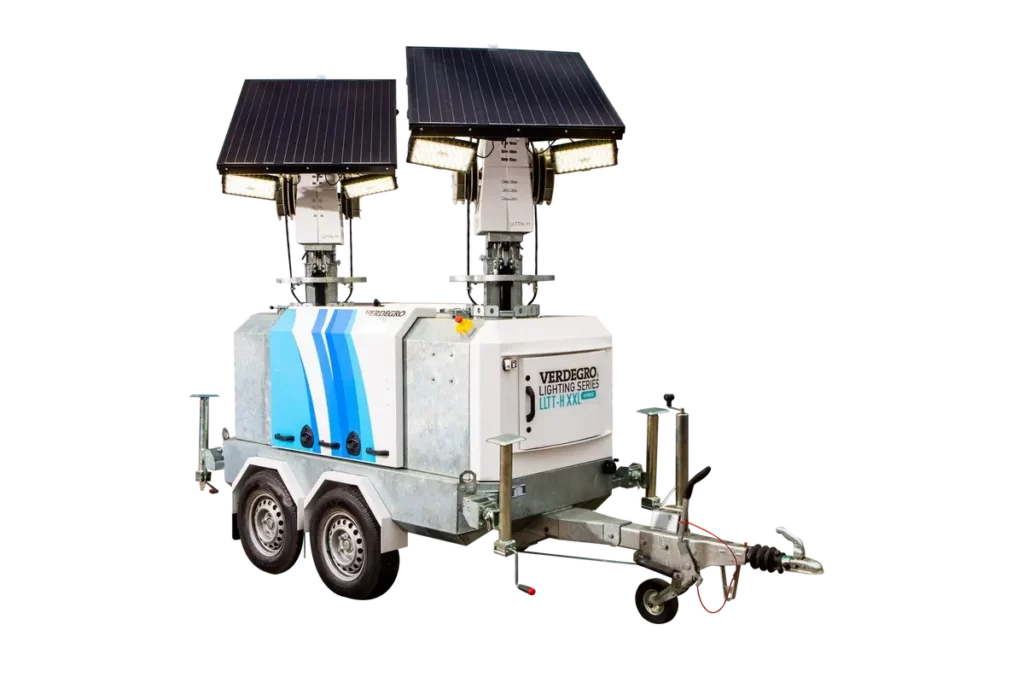

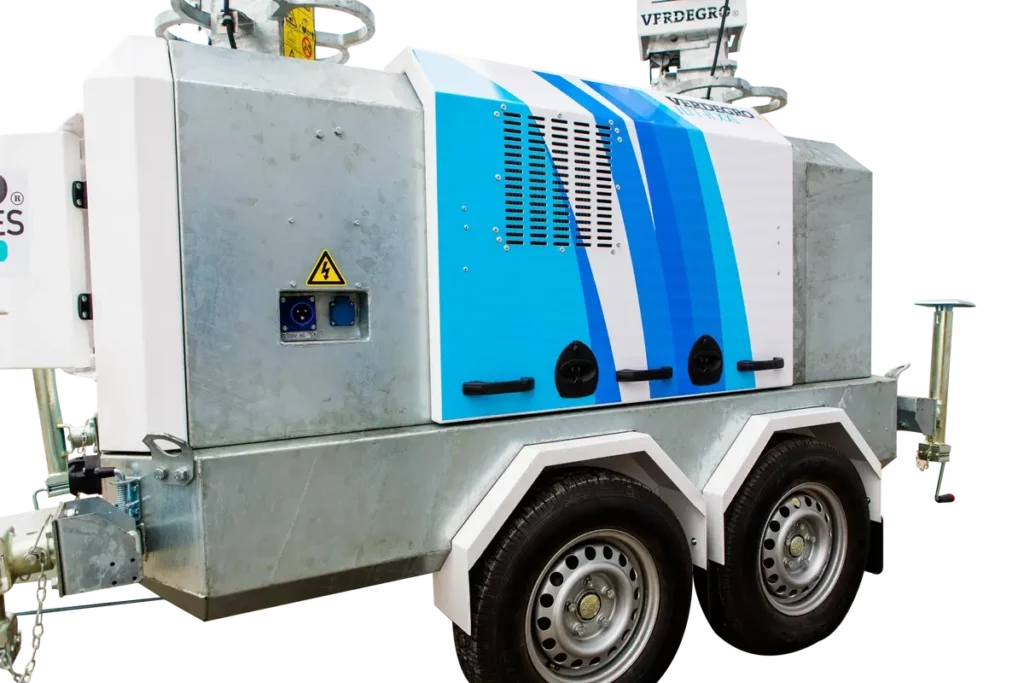

LED Light Tower Trailer-Hybrid XXL
The Verdegro LED Light Tower Trailer-Hybrid XXL (LLTT-H XXL) is equipped with 100W LED floodlights, providing 17,000 effective lumens. It features a setup of 2×6 lights, with an option to upgrade to 2×8 lights. The unit includes a photocell daylight sensor for automatic adjustment, a 9-meter mast for optimal height, and is built to withstand wind speeds of up to 110 km/h.
UNIQUE SELLING POINTS
- Hybrid power: solar + 24V DC generator
- High-capacity 600Ah battery bank

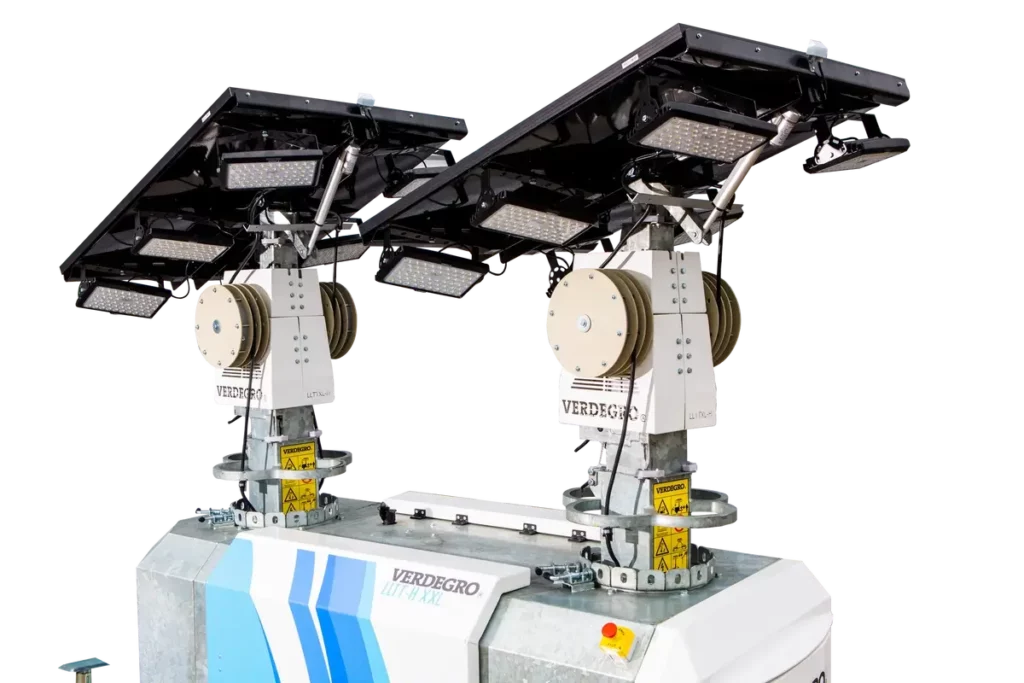

- Dual setup: 2x 6 or 8 LED floodlights
- High-efficiency and explosion-proof lighting options
- Hydraulic winch with 9m mast
- Long runtime: 65-70 days
- Optional geo-fencing via 4G interface
- Low fuel consumption: 0.4 L/H
DIMENSIONS AND WEIGHT

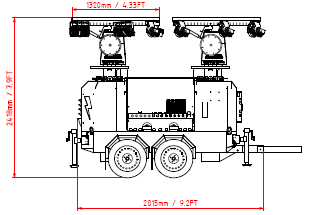

- Minimum dimensions: 2984mm x 1295mm x 2423mm

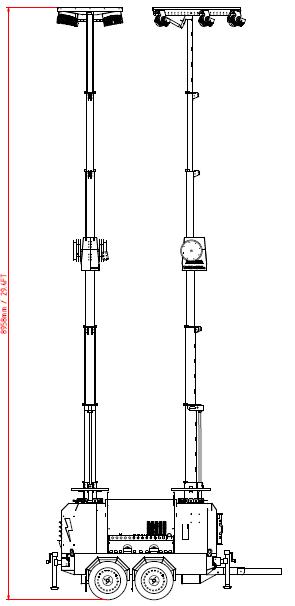

- Maximum dimensions: 2984mm x 2605mm x 8963mm
- Total weight without fuel: 1590 kg (2505 lbs)
FEATURES
- 100-watt LED floodlights with 17,000 effective lumens
- Standard setup with 2x 6 lights, optional upgrade to 8
- High-efficiency and explosion-proof LED floodlights available
- Photocell daylight sensor (on/auto/off)
- Spiral cable
- Optional geo-fencing via DSE web interface 4G
- Four outriggers with stabilizing jacks

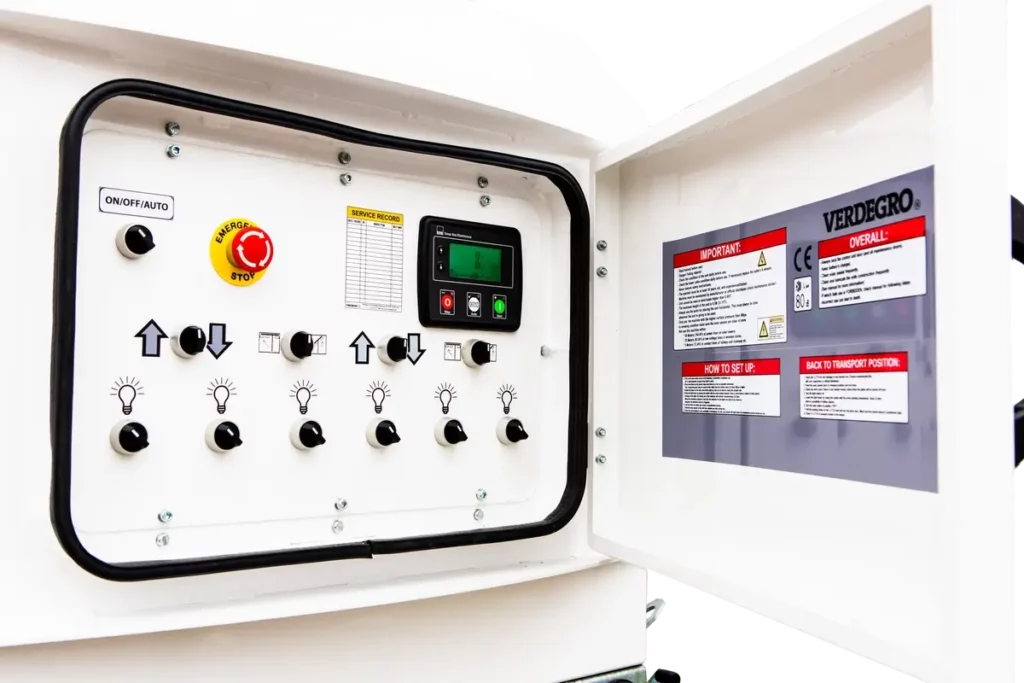

- LED backlight controller screen
- Aluminum covers painted in any desired RAL color
LIFTING SYSTEM
- Hydraulic winch, automatic
- 9m height
- Maximum wind speed: 110 km/h
ENGINE
- Kubota Z482 Tier 4
- Diesel
- Tank capacity: 270L / 71 gallons (115% liquid spill containment)
- Fuel consumption: 0.4 L/H (0.1 gal/H)
- Noise level at 7m: 65 dBA
- Runtime: 65-70 days standalone, depending on light output
- Engine speed: 3200 RPM (2 cylinders)
- Liquid-cooled engine

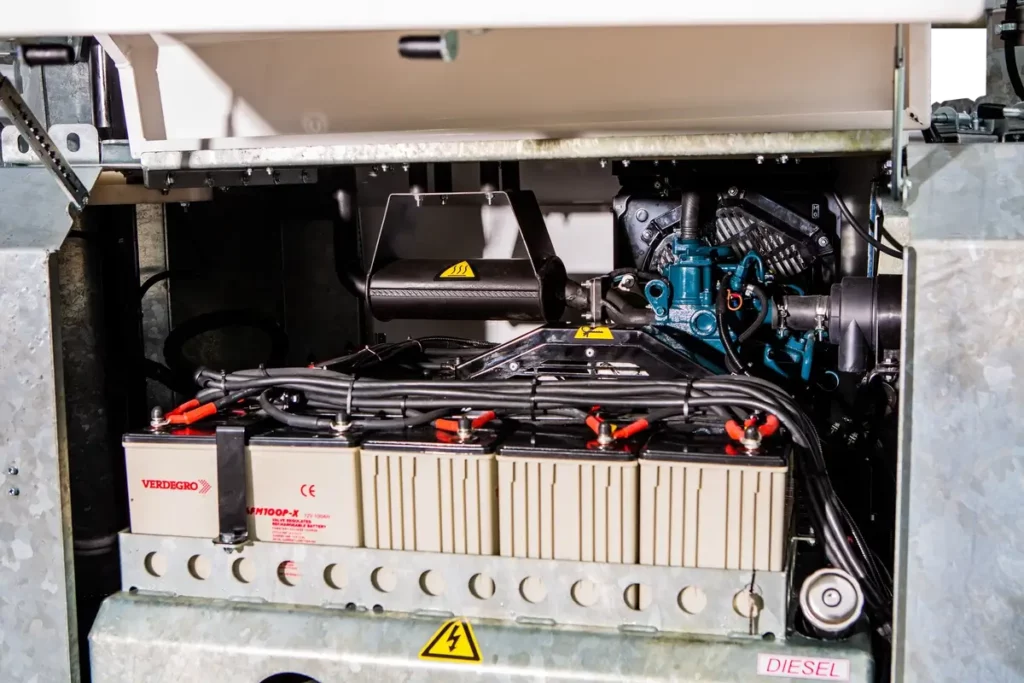

BATTERY BANK
- Long-life gel AGM battery bank: 600Ah, 24V DC
- Replaceable battery bank
SOLAR SYSTEM
- Standard solar system: 600Wp
- Solar charger: 20A
