BLADE – Trailer Truck Mounted Attenuator EU (CEN/TS 16786)
The No. 1 TTMA tested and approved according to CEN/TS 16786: Finally a new leader is born.
Watch a video here

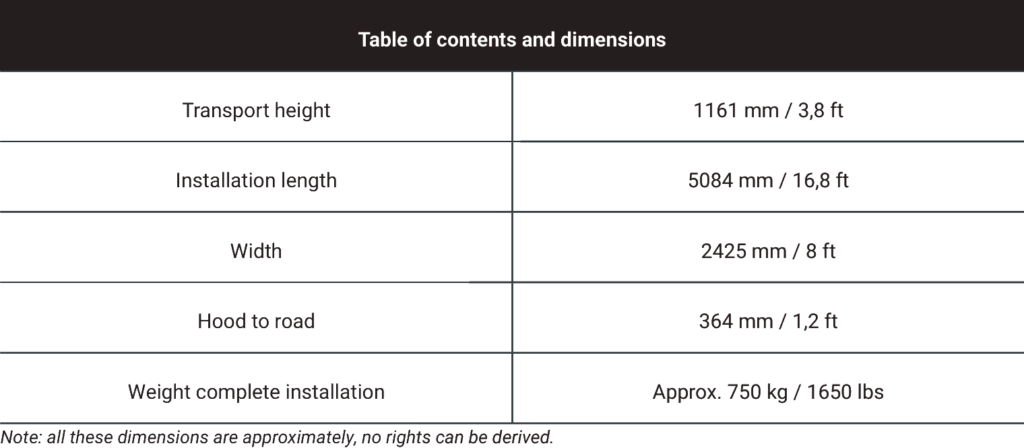

DIMENSIONS AND WEIGHT
Dimensions
5084 mm × 2425 mm
16.7 ft × 7.9 ft
TRANSPORT HEIGHT
1161 mm
3.8 ft
Weight
Approx. 750 kg / 1650 lbs
ABOUT THE BLADE-TTMA EU
The BLADE-TTMA EU is a state-of-the-art Trailer Truck Mounted Attenuator developed and tested to meet the highest European safety standards. The system has been 100 km/h crash tested and approved in accordance with CEN/TS 16786, ensuring reliable performance and optimal protection for both road workers and motorists in the event of an impact.
Engineered for strength, stability, and easy maintenance, the BLADE TTMA EU combines energy-absorbing technology with a compact, durable design for European road applications.
Documents And Certificates
The BLADE-TTMA EU is supplied with a CE certificate, crash test reports, and construction certificates in accordance with the Dutch Rijkswaterstaat directives.
In addition, the BLADE-TTMA EU can be supplied with a TÜV approval for individual trailer homologation, authorizing its use on public roads throughout the European Union, where such approval is required.
Patented Design
This design is protected by patents in Europe (EP3414397), the United States (US9739328), China (201780012010-9), and Hong Kong (1259882).
Technical Specifications
- Fully crash tested and approved according to CEN/TS 16786 Table 5 (T-TMA100-1 | T-TMA100-2 | T-TMA100-3 | T-TMA100-4)
- Equipped with standard 100K crash cushion, made entirely of aluminum
- Operated from the towing vehicle via a wired controller
- Equipped with 175 A or 350 A plug supplying full system power from the vehicle’s 12 Vdc or 24 Vdc electrical system
- The aluminium crash cushion and the galvanised construction can be painted in any desired RAL colour(s) (additional cost)
- Extra features include an LED arrow board, full-color VMS display, or lift system with LED display, all compliant with European and national safety standards (optional)
- Including test certifications and CE marking
- Geo fencing by Mobilityplanner.com (optional): visibility in Waze, Flitsmeister, Apple Maps, Here
BLADE-TTMA ACCESSORIES
- Arrow board frame – electrically raised (CEN/TS crash tested) (optional)
- Black foil chevrons or reflective foil chevrons on the trailer’s impact plate, with lights according to national specifications (optional)
- Strobe lights mounted on the sides of the arrow board(optional)
- Strobe lights mounted on the top of the impact plate (optional)
- Dr. AirBrake brake system (optional)
Mobitrack
Mobitrack can be integrated into your products, providing accurate and real-time location data. It keeps a detailed record of past locations, allowing you to see where your products have been. Mobitrack is simple to integrate into both new and existing products.
Statistics show that many accidents still occur involving road users and workers. To enhance the safety of both drivers and workers, Mobitrack can be configured to work with safety alert systems. This integration allows it to send alerts to drivers, warning them of nearby workers and significantly increasing safety.
Mobitrack is automatically integrated with a wide range of safety alert systems, including Google, Waze, Flitsmeister, Monotch, and your country’s traffic control system. We are the only manufacturer with such extensive integration across various safety alert platforms.
Additionally, the advanced implementation of the Mobitrack module allows you to request detailed information about your products, ensuring you have all the necessary data at your disposal.
Mobitrack – Basic
- Track your products’ locations accurately in real-time.
- Keeps a location history of where your products have been.
- Easily integrates with any product.
- Display your product in Mobilityplanner for easy access.
- Integration with safety alert systems to improve safety and send warnings.
Request additional information from your products: arrow left/right, cushion down/up, lights on/off etc.
Mobitrack – Advanced
- Track your products’ locations accurately in real-time.
- Keeps a location history of where your products have been.
- Easily integrates with any product.
- Display your product in Mobilityplanner for easy access.
- Integration with safety alert systems to improve safety and send warnings.
- Request additional information from your products: arrow left/right, cushion down/up, lights on/off etc.
