BLADE – Truck Mounted Attenuator EU (CEN/TS 16786)
A 100K crash cushion tested to CEN/TS 16786 TL-3 standards and an R58-3 approved bumper!
Watch a video here
Unique Selling Points
- 2000P tests performed with 2000 kg / 4409 lbs European-style SUVs
- Double safety blocking device for enhanced protection
- Efficient hydraulic rotation system for maneuverability
- Forklift pockets facilitate easy handling and transportation
- Robust steel hot galvanised mounting system ensures durability
- Energy absorption aluminium moisture-proof cartridge enhances safety

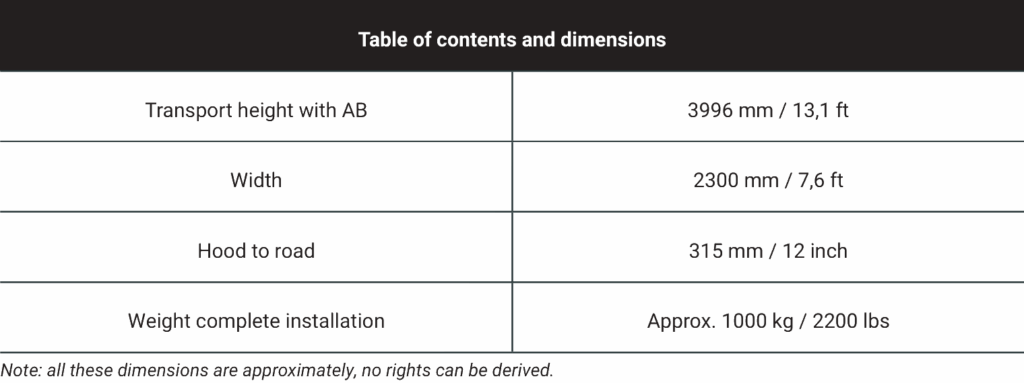

DIMENSIONS AND WEIGHT
dimensions
3996 mm × 2300 mm
13.1 ft × 7.6 ft
transport height
3996 mm
13.1 ft
Weight
Approx. 1000 kg / 2200 lbs

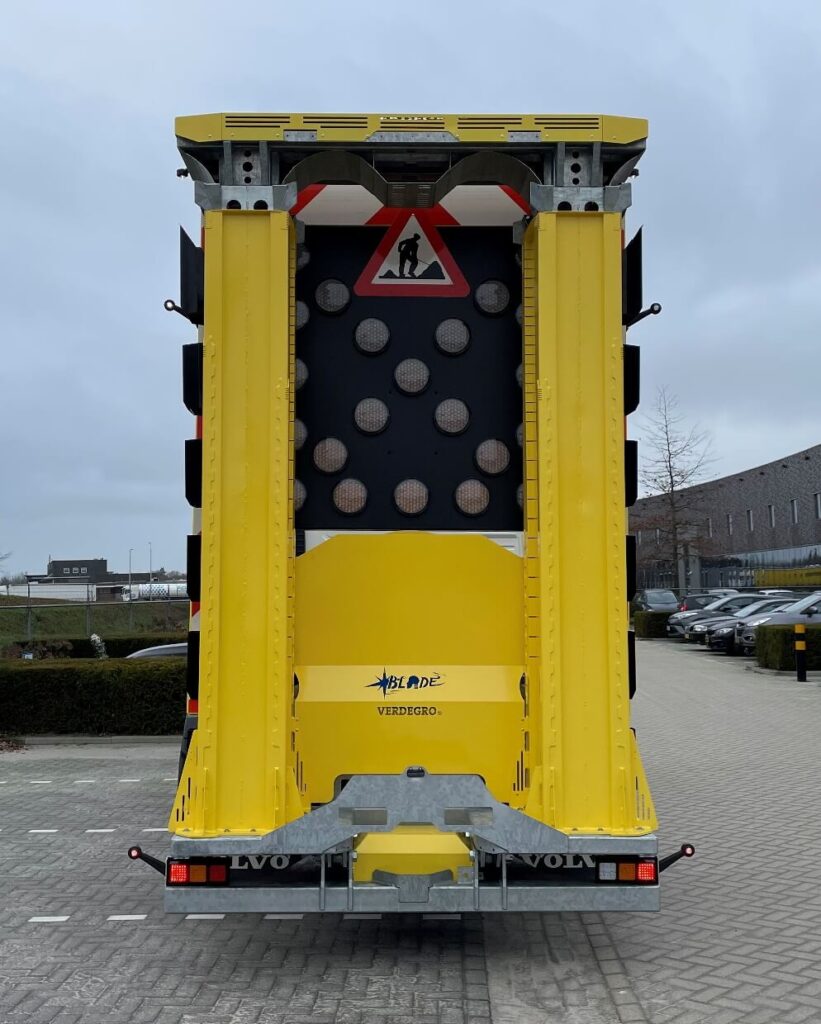

MEET THE BLADE-TMA EU
The BLADE-TMA EU is tested and approved in accordance with CEN/TS 16786, delivering top-tier crash protection across Europe. Optional features include an LED arrow board, full-color VMS display, or lift system with LED display, all compliant with European and national safety standards.
HIGH-PERFORMANCE EU CRASH ABSORBER
The BLADE-TMA EU is a crash absorber, consisting of a tilting frame, 100K crash cushion (TL-3), and R58-3 approved bumper. The system can also be equipped with a 3500 kg / 7716 lbs towing device.
DOCUMENTATION AND CERTIFICATION
The BLADE-TMA EU is supplied with a CE certificate, crash test reports, and construction certificates in accordance with the Dutch Rijkswaterstaat directives.
The BLADE-TMA EU is listed on the Rijkswaterstaat (NL) Quick Reference Card and is included in the approved crash absorber list of the Belgian Roads and Traffic Agency (BE).
PATENTED DESIGN
This design is protected by patents in Europe (EP3414397), the United States (US9739328), China (201780012010-9), and Hong Kong (1259882).
Technical Specifications
- Fully crash tested and approved according to CEN/TS 16786 Table 5 (T-TMA100-1 | T-TMA100-2 | T-TMA100-3 | T-TMA100-4)
- Operated from the towing vehicle via a wired controller
- Equipped with 175 A or 350 A plug supplying full system power from the vehicle’s 12 Vdc or 24 Vdc electrical system
- Hydraulic and electrical components are safely enclosed in a sealed compartment
- Two protected hydraulic cylinders tilt the cushion
- Rear and reversing lights are integrated into the cushion and tilting block
- The aluminium crash cushion and the galvanised construction can be painted in any desired RAL colour(s) (additional cost)
- Geo fencing by Mobilityplanner.com (optional): visibility in Waze, Flitsmeister, Apple Maps, Here

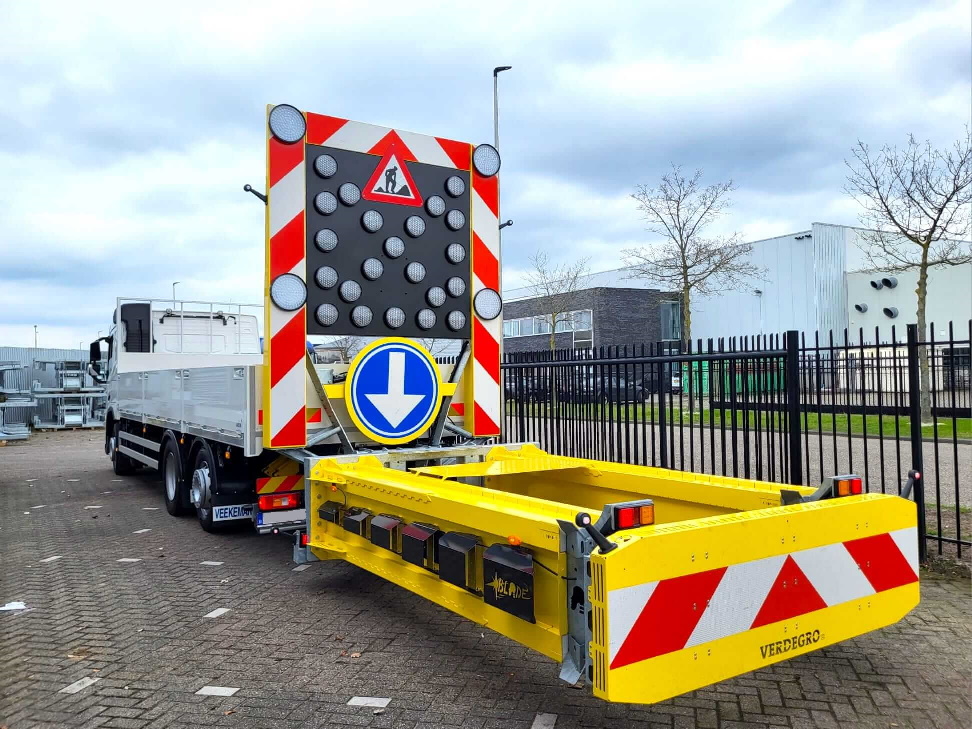

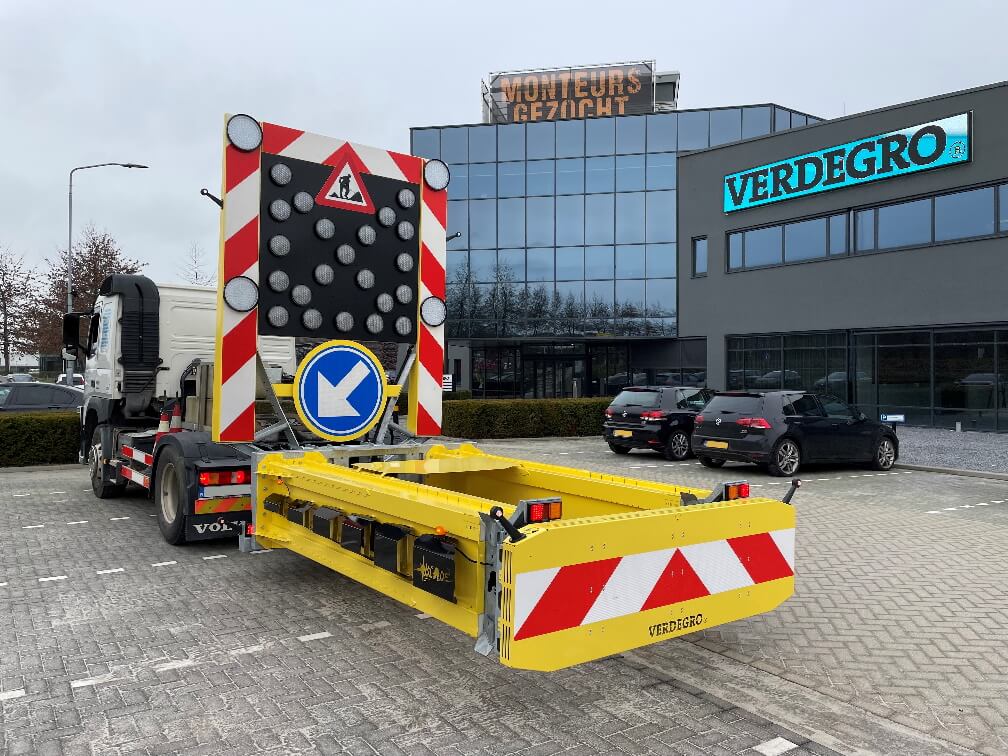

TECHNICAL SPECIFICATIONS: LIGHT ARROW BOARD (NL+BE)
- Light arrow board with Class 3 red and white reflective foil
- 23 amber LED lights with left/right arrow and cross formations
- Hydraulic rotating bottom plate D02, made in Class 3, round
- Four amber LED strobe lights (approx. 300mm) on the side frame (optional)
- Equipped with side flashing lights and/or regional version (optional)

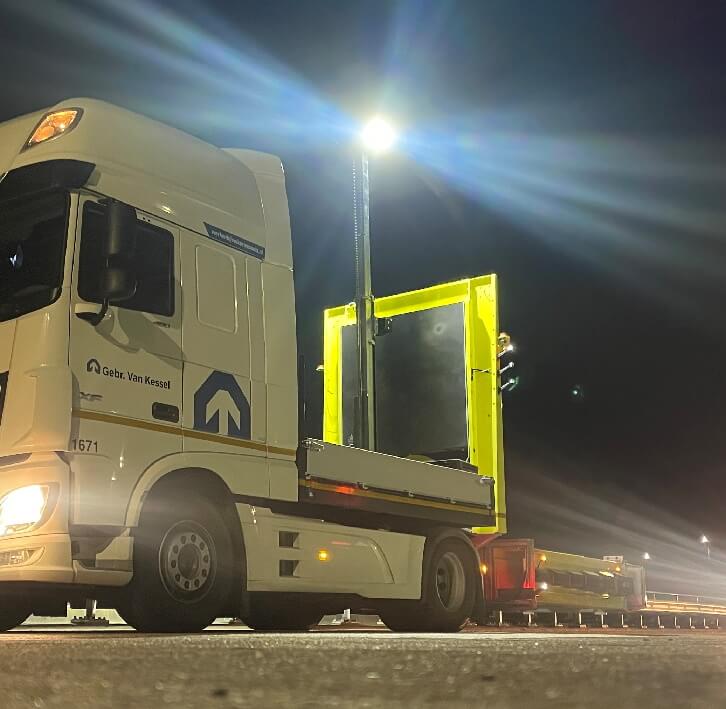

TECHNICAL SPECIFICATIONS: FULL COLOR LED DISPLAY
- LED arrow board with Class 3 red and white reflective foil
- Full-color 80×80 20mm LED display, compliant with EN12966
- Hydraulic rotating bottom plate D02, Class 3, round 1000 mm and/or 900 mm
- Two amber LED strobe lights (approx. 300mm) on the top frame (optional)
- Equipped with signal lights and additional 200mm LED strobelights (optional)
BLADE-TMA ACCESSORIES
- Reflective foil according your specs
- Swivel wheels front & back (optional)
- Rubber impact strip (optional)
- Dr. AirBrake brake system (optional)
Mobitrack
Mobitrack can be integrated into your products, providing accurate and real-time location data. It keeps a detailed record of past locations, allowing you to see where your products have been. Mobitrack is simple to integrate into both new and existing products.
Statistics show that many accidents still occur involving road users and workers. To enhance the safety of both drivers and workers, Mobitrack can be configured to work with safety alert systems. This integration allows it to send alerts to drivers, warning them of nearby workers and significantly increasing safety.
Mobitrack is automatically integrated with a wide range of safety alert systems, including Google, Waze, Flitsmeister, Monotch, and your country’s traffic control system. We are the only manufacturer with such extensive integration across various safety alert platforms.
Additionally, the advanced implementation of the Mobitrack module allows you to request detailed information about your products, ensuring you have all the necessary data at your disposal.
Mobitrack – Basic
- Track your products’ locations accurately in real-time.
- Keeps a location history of where your products have been.
- Easily integrates with any product.
- Display your product in Mobilityplanner for easy access.
- Integration with safety alert systems to improve safety and send warnings.
Request additional information from your products: arrow left/right, cushion down/up, lights on/off etc.
Mobitrack – Advanced
- Track your products’ locations accurately in real-time.
- Keeps a location history of where your products have been.
- Easily integrates with any product.
- Display your product in Mobilityplanner for easy access.
- Integration with safety alert systems to improve safety and send warnings.
- Request additional information from your products: arrow left/right, cushion down/up, lights on/off etc.
