Trailer Light Truck Mounted Attenuator US (TLTMA-US 70K)
The TLTMA-US 70K tested according NCHRP 350 TL-2 is still pending approval!
DIMENSIONS AND WEIGHT
Dimensions
4036 mm × 2033 mm
13.2 ft × 6.7 ft
TRANSPORT HEIGHT
2676 mm
8.8 ft
Weight
Approx. 907 kg / 2000 lbs
INFORMATION ABOUT THE TLTMA-US 70K

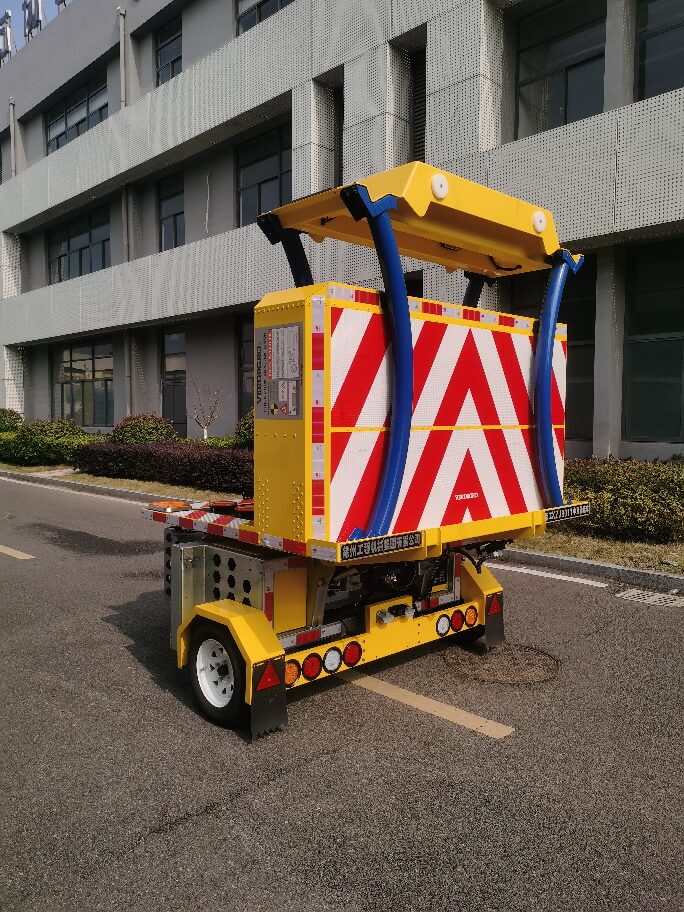

The Verdegro TLTMA-US (Light Truck Mounted Attenuator) provides a reliable safety solution for work zones. Designed for vehicles up to 3.5 tons, it is ideal for daily use in urban roadworks and can be safely operated on roads with speeds up to 70 km/h (~43 mph).
ROBUST, RELIABLE AND EASY TO MAINTAIN
The TLTMA-US is designed for both durability and ease of use. Its lightweight aluminium cushion and galvanised structure prevent moisture problems and ensure long-term reliability, while pre-bent aluminium tubes on the top and bottom of the cushion provide added strength and a sleek, professional look. The unit is vibration tested for dependable performance and features an easily replaceable hood with a bolted connection, making maintenance quick and straightforward.
CUSTOMISATION & QUALITY
Available in multiple colour options, the TLTMA-US combines ease of use with European quality standards. Each unit is delivered with full documentation, CE certification, and an English A4 instruction manual, ensuring your team can deploy it safely and efficiently.
PENDING APPROVAL…
The TLTMA-US has been tested according to NCHRP-350 TL II (2-50 | 2-51) and is pending official approval.
Technical Specifications
- Tested according to NCHRP-350 TL II (2-50 | 2-51). 2000P tests were done with a 2000 kg / 4409 lbs US pickup truck
- TLTMA 70K crash cushion, made entirely of aluminum, except for the galvanised backplate
- Operated by control buttons (up to 15 m range) from inside the towing vehicle
- 12 Vdc or 24 Vdc driving lights and side marker lamps mounted on cushion impact plate for optimal visibility
- Hydraulic Energy Pack offered in 12 Vdc or 24 Vdc configurations (optional)
- Galvanised steel structure, painted in your RAL colour (optional)
- Crash cushion and tubes painted in your RAL colour(s) (optional)
- Reflective foil on the cushion hood available on request
- Including test certifications and CE marking
- Geo fencing by Mobilityplanner.com (optional): visibility in Waze, Flitsmeister, Apple Maps, Here
TLTMA-US EXTRA OPTIONS:
- Hydraulic energy pack system 12 Vdc / 24 Vdc
- Manual rotating mounting frame for sweepers, with bracket for installing the LP15 Mini Arrow Board
- Welding plates for mounting to a locally fabricated subframe positioned between the chassis and cargo body
- Full-colour VMS 48×48 of 80×80 (20 mm pitch) LED display with reflective foil frame, flashers, and 4G/WiFi modem
- Verdegro LP15 Mini Board (TMA version), 12 Vdc / 24 Vdc, with combined wired TMA cabin controller (as shown and described)
Mobitrack
Mobitrack can be integrated into your products, providing accurate and real-time location data. It keeps a detailed record of past locations, allowing you to see where your products have been. Mobitrack is simple to integrate into both new and existing products.
Statistics show that many accidents still occur involving road users and workers. To enhance the safety of both drivers and workers, Mobitrack can be configured to work with safety alert systems. This integration allows it to send alerts to drivers, warning them of nearby workers and significantly increasing safety.
Mobitrack is automatically integrated with a wide range of safety alert systems, including Google, Waze, Flitsmeister, Monotch, and your country’s traffic control system. We are the only manufacturer with such extensive integration across various safety alert platforms.
Additionally, the advanced implementation of the Mobitrack module allows you to request detailed information about your products, ensuring you have all the necessary data at your disposal.
Mobitrack – Basic
- Track your products’ locations accurately in real-time.
- Keeps a location history of where your products have been.
- Easily integrates with any product.
- Display your product in Mobilityplanner.com for easy access.
- Integration with safety alert systems to improve safety and send warnings.
Request additional information from your products: arrow left/right, cushion down/up, lights on/off etc.
Mobitrack – Advanced
- Track your products’ locations accurately in real-time.
- Keeps a location history of where your products have been.
- Easily integrates with any product.
- Display your product in Mobilityplanner.com for easy access.
- Integration with safety alert systems to improve safety and send warnings.
- Request additional information from your products: arrow left/right, cushion down/up, lights on/off etc.
