Arrow Trailer (VD2-PL CHEVRON)

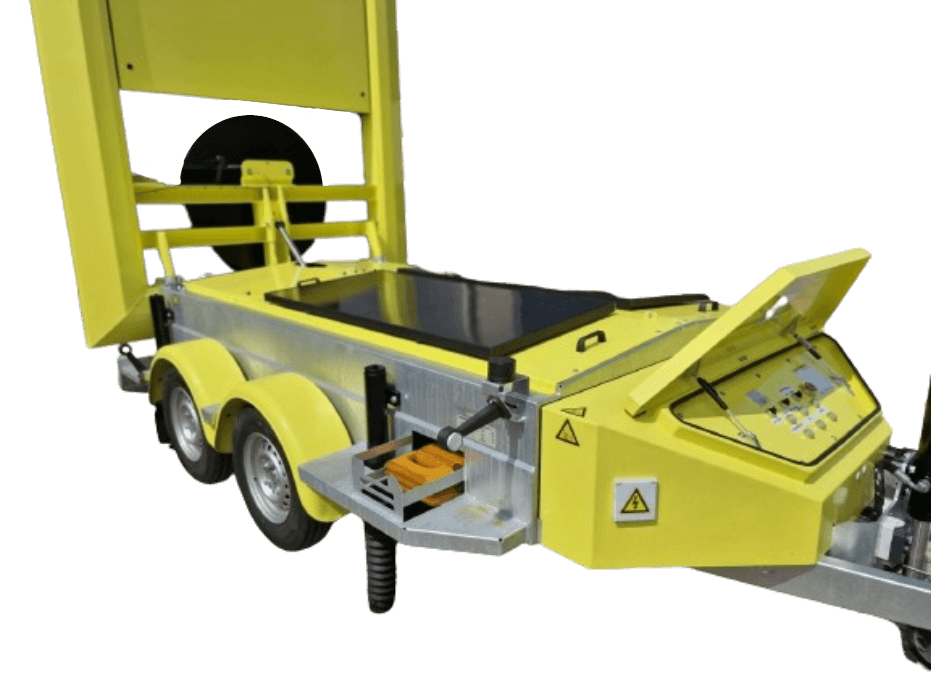

This fully customizable double-axle action car includes all specified options. Its trailer features two torsional spring axles and supports a maximum loaded weight of 1500 kg / 3306 lbs. Equipped with four extendable manual support legs, it ensures stability on various surfaces. The hydraulically foldable action frame is fitted with class 3 retroreflective foil, enhancing visibility and safety during operation.
OPTIONAL
- Andreas strip set
- Wireless remote-control unit
- Optionally equipped with spare tyre
- Integrated Mobitrack
TECHNICAL SPECIFICATIONS (SYSTEM AND GENERAL)
Construction & Design
- Trailer fitted with 2 torsional sprung axles rated at 1350 kg / 2976 lbs each
- Maximum loaded weight: approx. 1500 kg / 3306 lbs
- Equipped with legally prescribed driving lights, braking system, and parking brake
- Fully galvanised chassis
- Body parts powder coated in your desired colour or in accordance with country specifications
- Frame built according to country specifications
- Storage box for Andreas strips (rumble strips) accessible from the side of the trailer (rumble strips not included)
Arrow Board & Display System

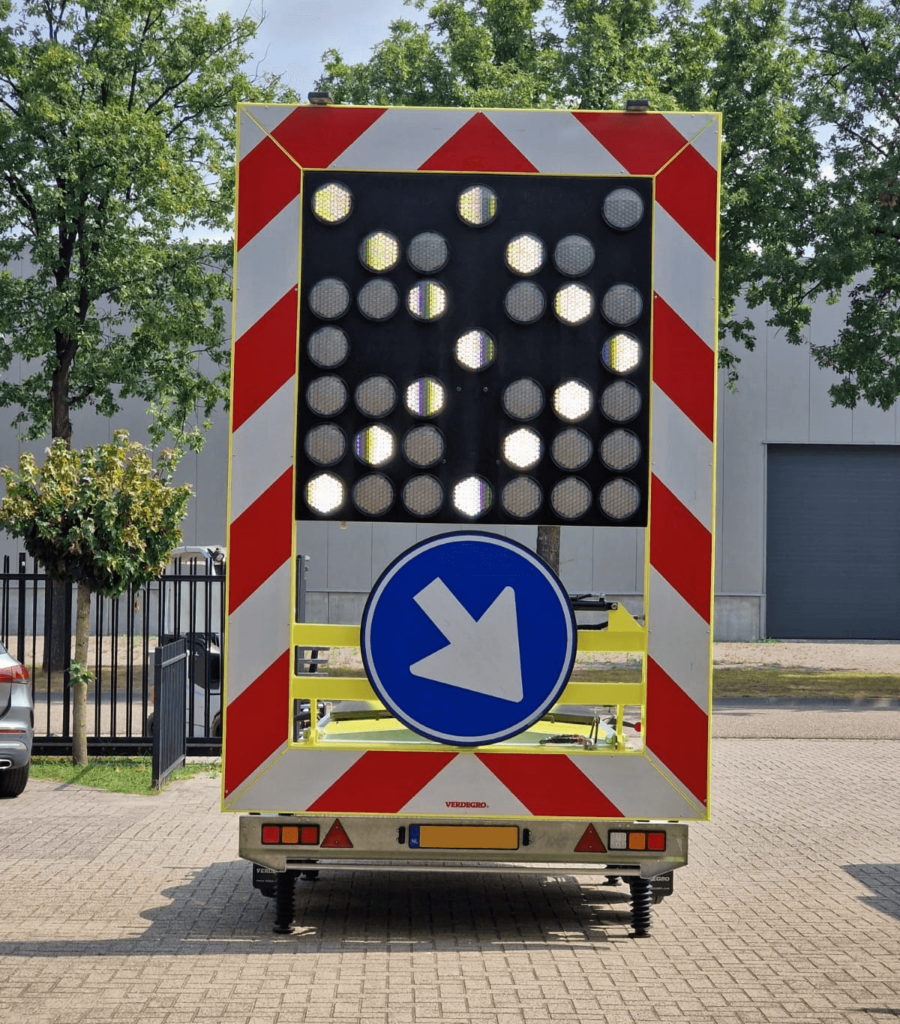

- Chevron arrow board frame hydraulically foldable, fitted with retro-reflective foil class 3
- Chevron arrow board fitted with 24 Vdc LED lamps (35 pieces), available in rotatable or fixed configurations. Compliant
with EN12353 guidelines and equipped with an automatic light dimmer - Arrow and sign D2 (white arrow on blue sign) (Ø 1000 mm) hydraulically rotatable
Hydraulic System
- Four extendable hydraulic
- support jacks for maximum stability
- Hydraulic jockey wheel for easy manoeuvring
Power Supply & Battery System
- Solar power system rated at 280 Wp, including 20 A IP65 solar charge controller with display
- Eight maintenance-free AGM solar batteries, each 100 Ah / 12 Vdc (total capacity 800 Ah)
- 175 A Anderson charging plug mounted at the front of the trailer
- Industrial battery charger with built-in wall socket output
Mobitrack
Mobitrack can be integrated into your products, providing accurate and real-time location data. It keeps a detailed record of past locations, allowing you to see where your products have been. Mobitrack is simple to integrate into both new and existing products.
Statistics show that many accidents still occur involving road users and workers. To enhance the safety of both drivers and workers, Mobitrack can be configured to work with safety alert systems. This integration allows it to send alerts to drivers, warning them of nearby workers and significantly increasing safety.
Mobitrack is automatically integrated with a wide range of safety alert systems, including Google, Waze, Flitsmeister, Monotch, and your country’s traffic control system. We are the only manufacturer with such extensive integration across various safety alert platforms.
Additionally, the advanced implementation of the Mobitrack module allows you to request detailed information about your products, ensuring you have all the necessary data at your disposal.
Mobitrack – Basic
- Track your products’ locations accurately in real-time.
- Keeps a location history of where your products have been.
- Easily integrates with any product.
- Display your product in Mobilityplanner.com for easy access.
- Integration with safety alert systems to improve safety and send warnings.
Request additional information from your products: arrow left/right, cushion down/up, lights on/off etc.
Mobitrack – Advanced
- Track your products’ locations accurately in real-time.
- Keeps a location history of where your products have been.
- Easily integrates with any product.
- Display your product in Mobilityplanner.com for easy access.
- Integration with safety alert systems to improve safety and send warnings.
- Request additional information from your products: arrow left/right, cushion down/up, lights on/off etc.
