Mobile Lane Signaling System (MLS)

The Verdegro MLS is a unique innovative machine that can be used as a MLS (Mobile Lane Signaling) or MRI (Mobile Route Information) system. This system designed by Verdegro can be used for many purposes.

UNIQUE SELLING POINTS

  • Heavy-duty skid and trailer with a total weight of 12,000 kg and load capacity of 10,000 kg per axle.
  • Quick setup time of under 4 minutes, ensuring minimal disruption and rapid deployment.
  • Equipped with Verdegro NCHRP 350 TL2 crash absorber, providing enhanced road safety.
  • Hydraulically extendable 3-piece horizontal arm for precise positioning of signal generators above desired lanes.

TECHNICAL SPECIFICATIONS

SKID:

  • Length: 6,815 mm
  • Width: 2,340 mm
  • Height: 2,710 mm
  • Total weight: 12,000 kg / 26,455 lbs
  • Preservation: Blasting and coating in prescribed MLS colors

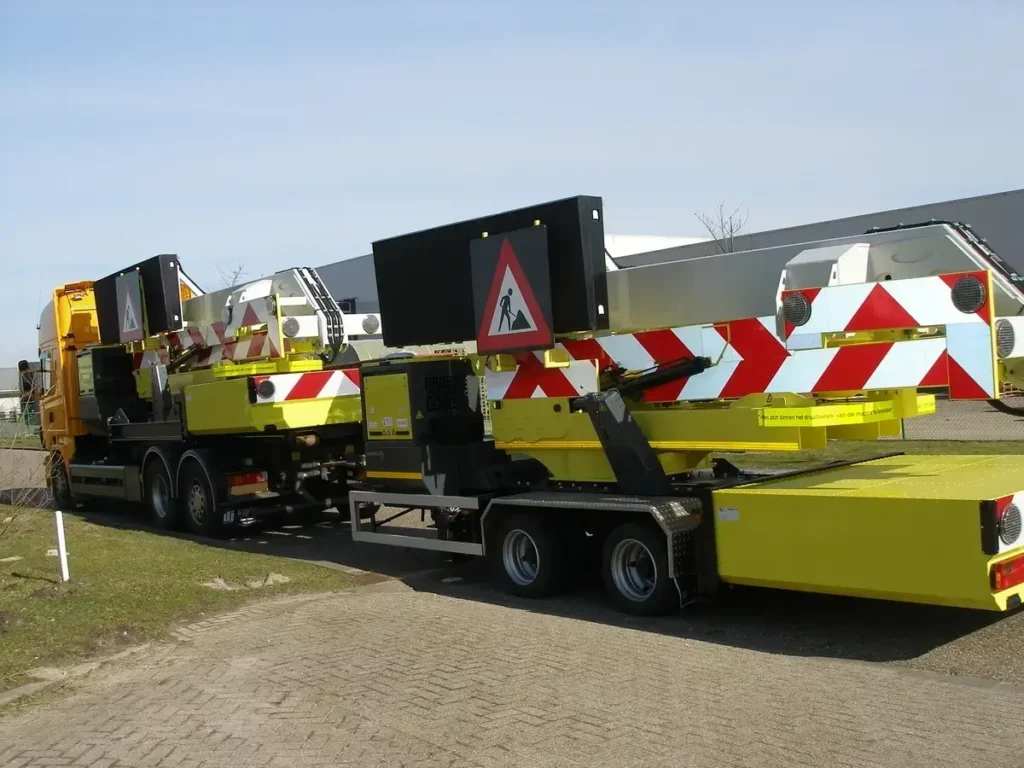

TRAILER:

  • Special two-axis center trailer
  • Length: 6,800 mm (excluding drawbar)
  • Width: 2,350 mm
  • Ground clearance: 200 mm
  • Heavy base frame with lowered front and rear axles
  • Total: 8 wheels and 1 spare wheel
  • 2 air suspension axles, load capacity: 10,000 kg / 22,046 lbs each
  • Preservation: Blasting and coating
  • Height-adjustable drawbar

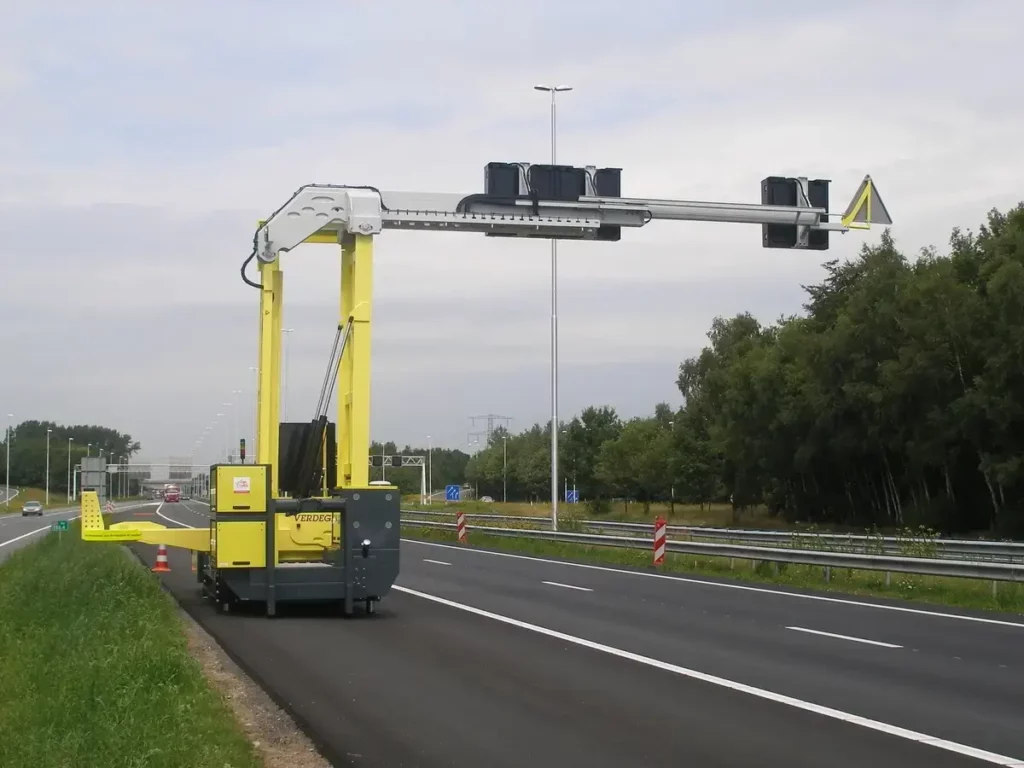

Additional details about the skid and trailer chassis include a specialized lifting and tilting mechanism designed for the MLS structure. The mast or boom utilizes two rams and rods positioned vertically and horizontally, mounted on a turntable with a hydraulic cylinder capable of rotating 90 degrees above ground. A three-piece horizontal arm extends hydraulically to position the three signal generators above desired lanes. Positioned at the rear of the chassis is the crash absorber. The setup and takedown process for these components can be completed within a maximum time frame of 4 minutes.

OPTIONAL

  • Four-lane system with a 4th mast/signal matrix that is partly hydraulic and manually retractable.
  • 100 km/h crash cushion mounted on the trailer unit.
