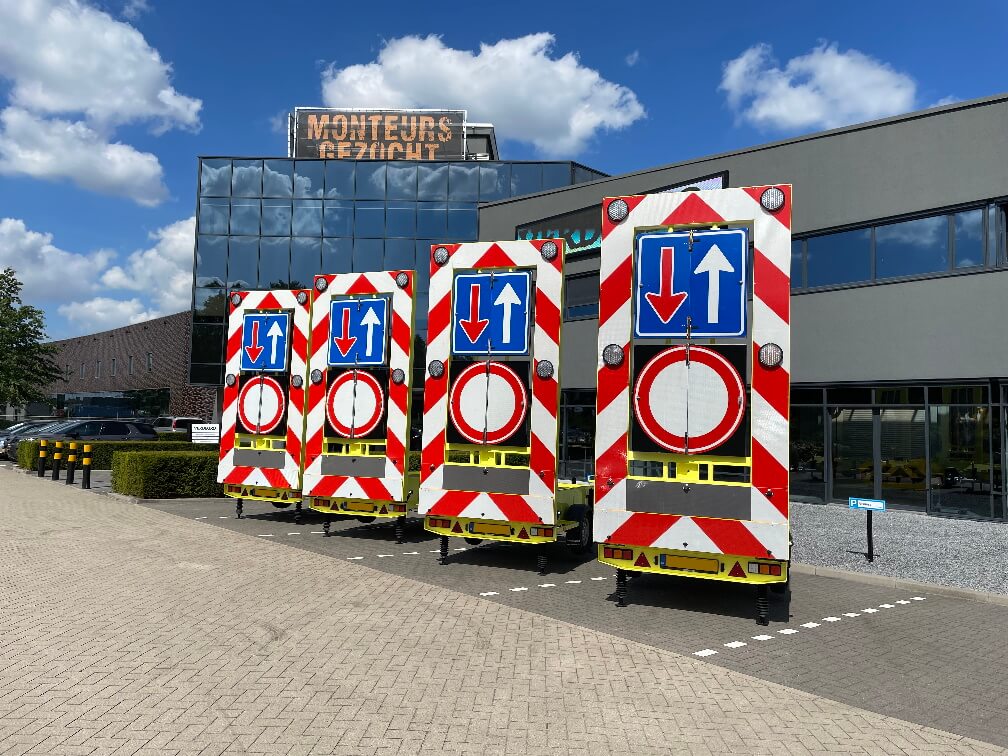

Advance Warning Trailer (VD1-VW)
The Advance Warning Trailer (VD1-VW) features a single torsion spring axle and legal driving lights, including fog lights. The front hatches are easy to open and equipped with solid locks and gas springs. The unit weighs approximately 950 kg (2094 lbs) when unloaded. It includes a 400Ah 12V battery bank and a hydraulically adjustable window.
UNIQUE SELLING POINTS
- Single torsion spring axle with 1350 kg capacity and overrun brake.
- Legal driving lights including fog lamp for enhanced visibility.
- Easy-open front hatches with solid locks and gas springs.
- Maintenance-free 400 Ah 12V gel glass mat battery set.
- Fully hydraulically adjustable with spring return outriggers and nose wheel.
- 10-pole plug for vehicle operation, excluding vehicle adaptation.
- EN-approved automatic brightness control for LED lights.
- Diamond-grade retroreflective frame edges on the action window.
TECHNICAL SPECIFICATIONS
- Single torsion spring axle with 1350 kg capacity and overrun brake.
- Includes legal driving lights with fog lamp.
- Front hatches feature easy-open solid locks and gas springs.
- Trailer weight: 950 kg unloaded; maximum total weight of 1350 kg.
- 400 Ah 12V maintenance-free gel glass mat battery set, providing at least 120 hours of lighting.
- Includes 12V battery charger with external control box and 11m charging cable.
- Fully hydraulically adjustable with single-acting spring return outriggers and nose wheel.
- Hydraulically adjustable action window.
- Equipped with 10-pole plug for vehicle operation (vehicle adaptation excluded).
- 1.6 kW hydraulic power pack.
- Finished in RAL 1016 (or custom RAL color).
- Action window features 4 alternating LED lights, automatic brightness control, and EN approval.
- Retroreflective frame edges on action window with folding sign “moving barrier” in diamond grade.
- Mounted clapboards.
- Action window movable up to 45 km/h.
- 16-pin Jaeger brand/type plug for vehicle registration and license plate fitting.
OPTIONAL
- Andreas strip set
