Arrow Trailer (VD1-PL)

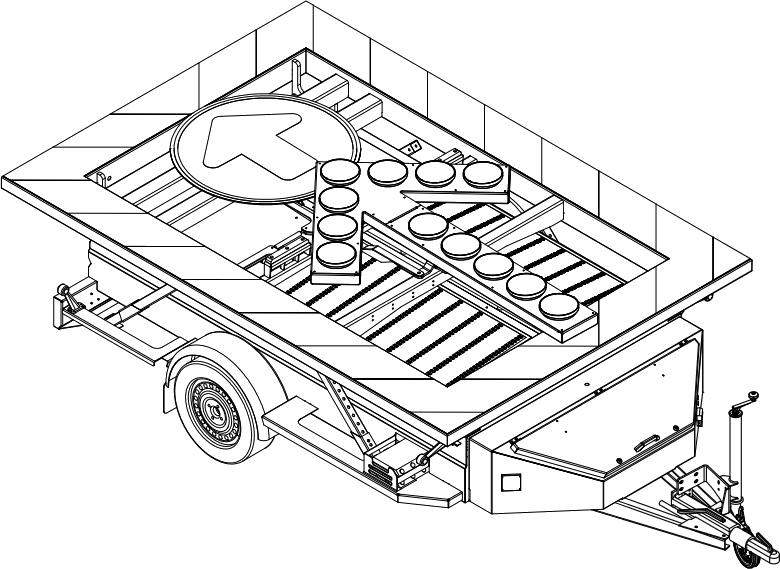

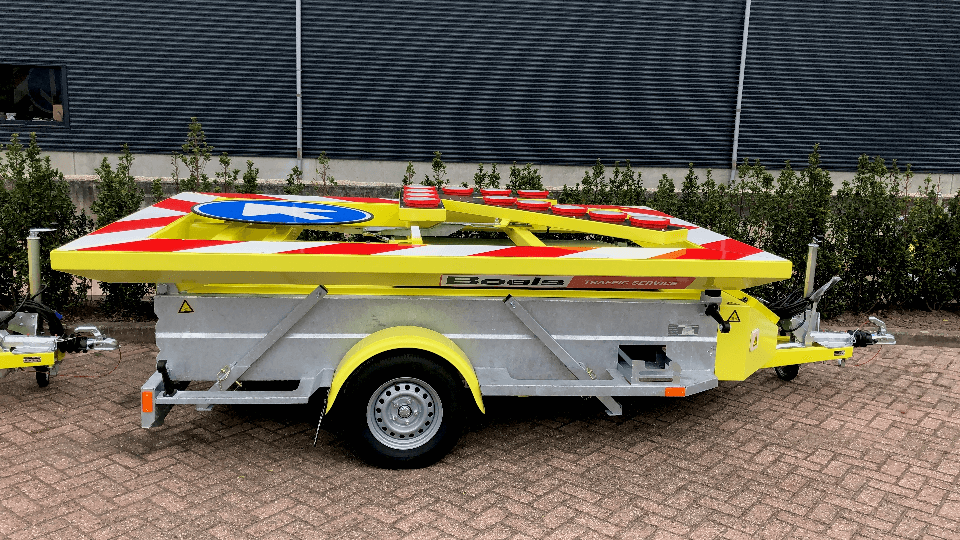

This fully manual single-axle action car includes customizable options as per your specifications. It features a trailer with 1 torsional spring axle and a maximum loaded weight of 1350 kg / 2976 lbs. The unit is equipped with 4 extendable manual support legs and an action frame that is hydraulically foldable, fitted with retroreflective foil (class 3).
UNIQUE SELLING POINTS
- Equipped with 1 torsional spring axle, 1350 kg / 2976 lbs, legally prescribed driving lights, and a parking brake.
- Maximum loaded weight capacity of 1350 kg / 2976 lbs with registration certificate.
- Completely closed construction with an open bottom for versatility.
- Features a control hatch on the front box with double-bit locks.
- Includes 4 extendable manual support legs for stability.
- Hydraulically foldable action frame with Class 3 retroreflective foil.
- Configured with 24V LED lamps, rotatable or fixed arrow setup complying with EN12353 standards, including automatic light dimmer.
- Solar energy system with 280 Wp capacity, IP65 solar charger, and maintenance-free 100 Ah 12V solar glass-mat batteries.
TECHNICAL SPECIFICATIONS
- Axles: 1 torsional spring axle, 1350 kg / 2976 lbs, with legally prescribed driving lights, braked, and parking brake
- Maximum Loaded Weight: 1350 kg / 2976 lbs with registration certificate
- Construction: Completely closed tray with an open bottom
- Control Hatch: Front box with 1 hinged, lockable control hatch (double-bit locks)
- Support Legs: 4 extendable manual support legs
- Action Frame: Hydraulically foldable action frame with Class 3 retroreflective foil
- Arrow Configuration: 24V LED lamps, rotatable or fixed arrow configuration meeting EN12353 guidelines, includes automatic light dimmer
- Rotatability: Hydraulically rotatable Arrow and sign D2 (900/1000mm diameter)

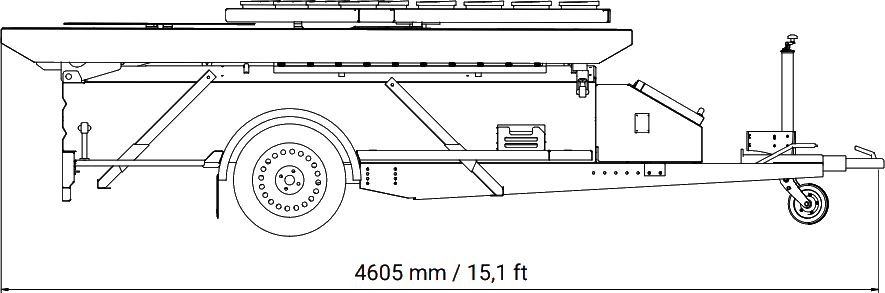

- Transport Position: Action frame design ensures retroreflective foil is not visible in transport position
- Solar System: 280 Wp solar energy system with 20A IP65 solar charger, display, and accessories
- Batteries: 4 maintenance-free solar glass-mat batteries, 100 Ah 12 Volt each (total 400 Ah)
- Storage: Andreas strips (rumble strips) storage on the side of the trailer (excluding rumble strips)
- Chassis: Fully galvanized chassis
- Body Parts: Powder coated in your desired color or RAL 1016 compliant with Dutch RWS requirements
- Charging Plug: 175Amp Anderson charging plug fitted at the front
- Jockey Wheel: Hydraulic jockey wheel
- Battery Charger: 230Vac battery charger with grid connection, includes installation and 15m charging cable
ABOUT THE VD1-PL
The VD1-PL is a fully manual single-axle action trailer, meticulously crafted to incorporate your specified options.
OPTIONAL
- Andreas strip set available
- Wireless remote-control unit optional
- Optional spare wheel configuration
MOBITRACK
Mobitrack can be integrated into your products, providing accurate and real-time location data. It keeps a detailed record of past locations, allowing you to see where your products have been. Mobitrack is simple to integrate into both new and existing products.
Statistics show that many accidents still occur involving road users and workers. To enhance the safety of both drivers and workers, Mobitrack can be configured to work with safety alert systems. This integration allows it to send alerts to drivers, warning them of nearby workers and significantly increasing safety.
Mobitrack is automatically integrated with a wide range of safety alert systems, including Google, Waze, Flitsmeister, Monotch, and your country’s traffic control system. We are the only manufacturer with such extensive integration across various safety alert platforms.
Additionally, the advanced implementation of the Mobitrack module allows you to request detailed information about your products, ensuring you have all the necessary data at your disposal.
MOBITRACK – SIMPLE
- Track your products’ locations accurately in real-time.
- Keeps a location history of where your products have been.
- Easily integrates with any product.
- Display your product in the Mobilityplanner platform for easy access.
- Integration with safety alert systems to improve safety and send warnings.
Request additional information from your products: arrow left/right, cushion down/up, lights on/off etc.
MOBITRACK – ADVANCED
- Track your products’ locations accurately in real-time.
- Keeps a location history of where your products have been.
- Easily integrates with any product.
- Display your product in the Mobilityplanner platform for easy access.
- Integration with safety alert systems to improve safety and send warnings.
- Request additional information from your products: arrow left/right, cushion down/up, lights on/off etc.
