Solar Message Unit (SMU)
Easy to use and easy to place. Completely CO-2 Neutral stand alone application. Perfect for road works and events. High resistance to vandals, relatively low priced. Full color LED display up to 96×96 pixels with a 20mm pixel pitch
UNIQUE SELLING POINTS
- Hydraulic slide for up to 6.5m vertical adjustment.
- Rotatable for flexible positioning.
- Full Color LED Display with 20mm pixel pitch.
- Operates via 3G/Wifi modem for remote programming.
- Includes solar panels and large gel glass mat battery.
- Complies with EN 12966 standards for visibility and safety.
TECHNICAL SPECIFICATIONS
- Standard hydraulic slide allows for up-down movement up to 6.5 meters.
- Manually rotatable for flexible positioning.
- Full Color LED Display supports text and configurations with user-friendly software.
- Pixel pitch of 20mm, standard 80×80 matrix (custom matrix available on request).
- Complies with EN 12966 standards, verified by an independent test house.
- Completely enclosed design for protection.
- All doors equipped with secure locks for easy access.
- Operates via 3G/Wifi modem with programming software for remote display control.
- Backup software control in case of software crashes; manual reboot required.

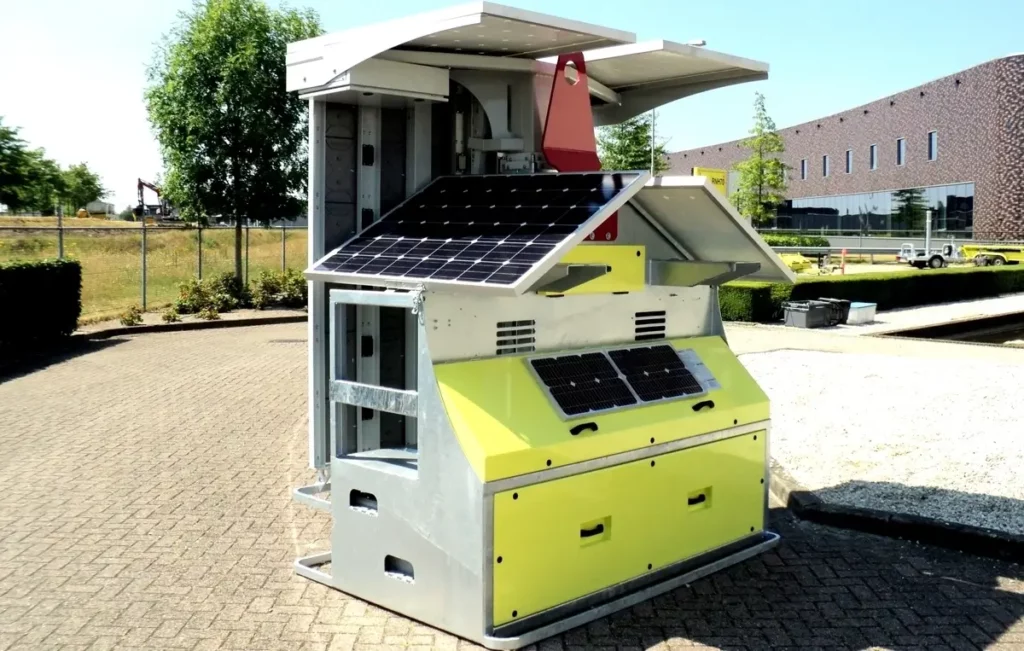

- Standard equipped with solar panels and a large gel glass mat battery pack.
- Industrial battery charger included for wall socket connection.
- Includes hidden ballast weight for stability.

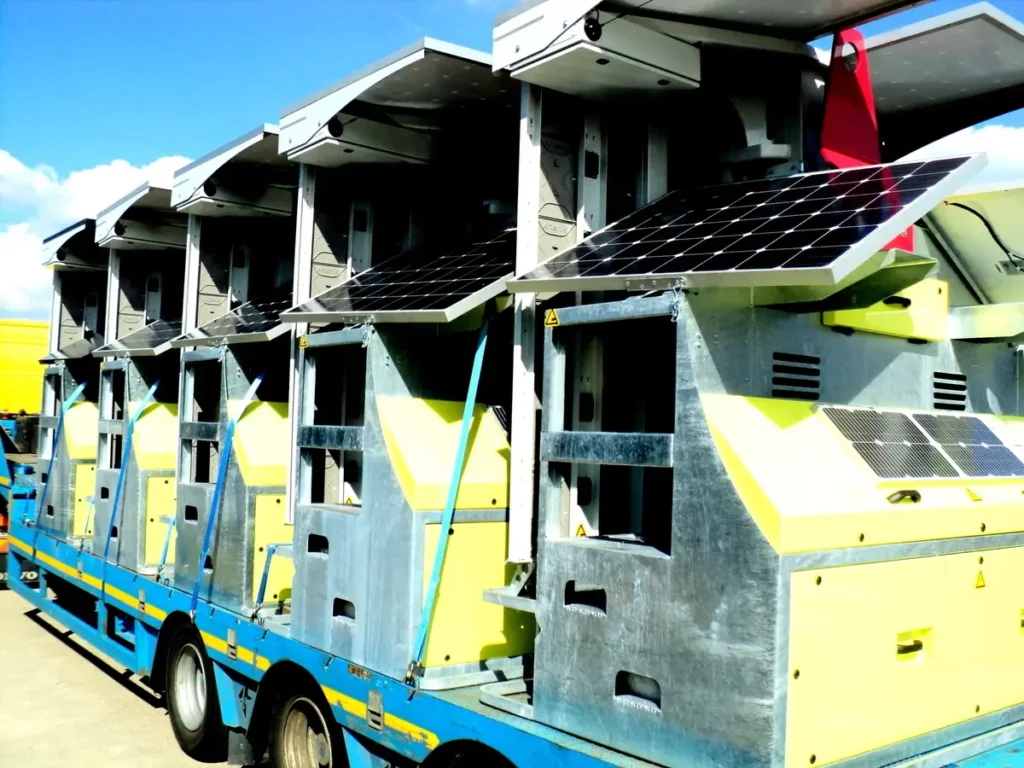

- Transportable on a trailer (ballast removal required).
- Can be moved using forklift or crane.
- Dimensions: 2200mm (W) x 1480mm (D) x 2550mm (H).
OPTIONAL
- Kubota Diesel DC Generator: Reliable and efficient power source.
- Start/Stop System: Enables easy operation.
- 60 Litre Tank: Provides ample fuel capacity.
- Easy Installation and Maintenance: Simplifies setup and upkeep.
- Backup Power-Supply for Winter Months: Ensures continuous operation even in adverse conditions.
