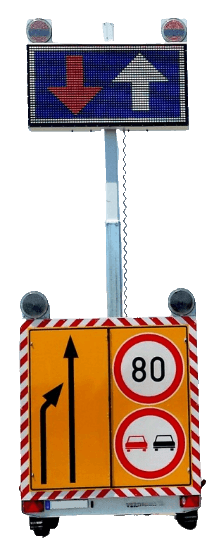

Variable Message Sign Hybrid (VMS-H)
The Variable Message Sign Trailer (VMS-H) is a robust mobile signaling solution designed for efficient traffic management. It features a galvanized steel chassis, LED lighting, and a spacious loading area. Ideal for diverse road applications, it includes adjustable features and optional accessories for enhanced functionality in traffic control operations.
Technical Specifications
Construction & Design
- Chassis constructed from MIG welded steel and protected with hot-dip galvanisation according to EN ISO 1461
- The side walls are made of hot dip galvanised steel
- Two supporting wedges are mounted on the trailer side walls
Trailer Dimensions
- The trailer has a useful load capacity of 210 kg / 462 lbs The total width of the trailer is 2200 mm
- The side walls are 350 mm high on the outside and 310 mm on the inside
- The loading area measures 1800 mm in length and 1350 mm in width
- The folded height is 3.5 m from the ground to the highest point 108
- When fully raised, the height is 6.5 m from the ground to the top of the LED display
Axles, Wheels & Suspension
- Equipped with double braked rubber torsion suspension axles
- Four wheels plus one spare wheel, size 5Jx13 inch
- The spare wheel is mounted at the rear of the trailer
- Jockey wheel is front-mounted, manually adjustable, with turnover and locking function
Drawbar & Coupling
- The drawbar is vertically adjustable and braked, including a parking brake
- Supplied couplings include a standard B50X ball, optional DIN40 or DIN50 couplings are available
Power Supply & Battery System
- AGM battery set providing 200 Ah
Lighting & Electrical System
- Approved multi-voltage LED driving lights suitable for 12 Vdc or 24 Vdc
Communication & Control
- 4G modem including software for remote programming and operation via the user-friendly, free Verdegro portal: www.mobilityplanner.com (excluding mandatory monthly data plan and SIM card with VPN connection)
OPTIONAL
- Touchscreen computer mounted inside the trailer cabinet
Technical INFORMATION VARIABLE MESSAGE SIGN
Construction & Display
- The housing is constructed from MIG/TIG welded aluminium
- Display dimensions: 1920 mm (W) × 1280 mm (H)
- Full-colour and full-matrix LED display
- Matrix resolution of 96 pixels (W) × 64 pixels (H)
- Pixel pitch of 20 mm
Control & Software
- Automatic brightness control
- 4G modem including software for remote programming and operation is user-friendly
- Free Verdegro portal: www.mobilityplanner.com (excluding mandatory monthly data plan and SIM card with VPN connection)
Standards & Voltage
- Optical testing according to NEN-EN 12966, full test report included
Flash Lights
- Two round LED flash lights (340 mm each) mounted on the upper edges of the VMS board according to class L9H / L9M
Mobitrack
Mobitrack can be integrated into your products, providing accurate and real-time location data. It keeps a detailed record of past locations, allowing you to see where your products have been. Mobitrack is simple to integrate into both new and existing products.
Statistics show that many accidents still occur involving road users and workers. To enhance the safety of both drivers and workers, Mobitrack can be configured to work with safety alert systems. This integration allows it to send alerts to drivers, warning them of nearby workers and significantly increasing safety.
Mobitrack is automatically integrated with a wide range of safety alert systems, including Google, Waze, Flitsmeister, Monotch, and your country’s traffic control system. We are the only manufacturer with such extensive integration across various safety alert platforms.
Additionally, the advanced implementation of the Mobitrack module allows you to request detailed information about your products, ensuring you have all the necessary data at your disposal.
Mobitrack – Basic
- Track your products’ locations accurately in real-time.
- Keeps a location history of where your products have been.
- Easily integrates with any product.
- Display your product in Mobilityplanner for easy access.
- Integration with safety alert systems to improve safety and send warnings.
Request additional information from your products: arrow left/right, cushion down/up, lights on/off etc.
Mobitrack – Advanced
- Track your products’ locations accurately in real-time.
- Keeps a location history of where your products have been.
- Easily integrates with any product.
- Display your product in Mobilityplanner for easy access.
- Integration with safety alert systems to improve safety and send warnings.
- Request additional information from your products: arrow left/right, cushion down/up, lights on/off etc.
