The Verdegro Autocone 2.0

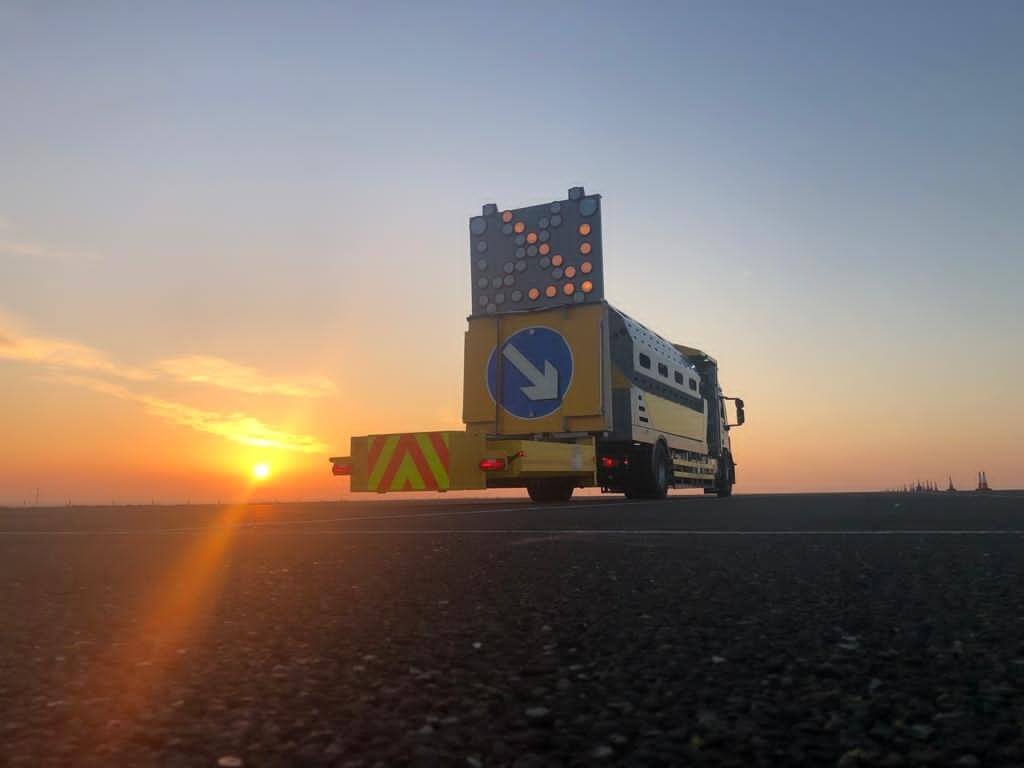

The new Verdegro Truck Mounted patented Autocone 2.0 system, the fully automatic cone deployment system can be optional equipped with a patented rumble mat layer, and optional TMA mounted on the Truck. The autocone system can be installed on any standard 18T chassis with air suspension.
UNIQUE SELLING POINTS
- Independent, efficient cone picking and placing system.
- High-resistance steel and aluminum construction for longevity.
- Holds up to 400 cones in a clean, functional barrel design.
- High-resistance steel guiding rails ensure accurate positioning.
- Hydraulic cone catching clamps for quick gripping and releasing.
- Fits standard 18T truck chassis with air suspension for stability.
TECHNICAL SPECIFICATIONS
Each cone features a black floorplate with white and red high-reflecting strip film, standing at 1000mm in height with a 560mm x 560mm base. Built as a single-piece design, it includes a square-type, extra-thick, and heavy base weighing approximately 7.6 kg (16 lbs) each. Strengthened edges and circles on the basement ensure resilience under various weather conditions, supported by hydraulic clamps for secure handling. The Autocone 2.0 (AC) system accommodates up to 400 cones and can be adapted to use local cones upon request, if technically feasible.
- Powered by truck chassis engine PTO for hydraulic pump operation.
- Available in standard yellow (RAL 1023) or custom RAL colors.
- Cones are not included and must be sourced separately.
TECHNICAL INFORMATION
SUB-FRAME
- Sub-frame constructed from high-resistance steel profiles and plates.
- Coupled to vehicle chassis using bolts and bars for secure attachment.
- Includes rotating compartment for cone storage.
- Equipped with automatic cone picking and placing devices.
- Guide rails integrated into the sub-frame for smooth operation.
CONE STORAGE

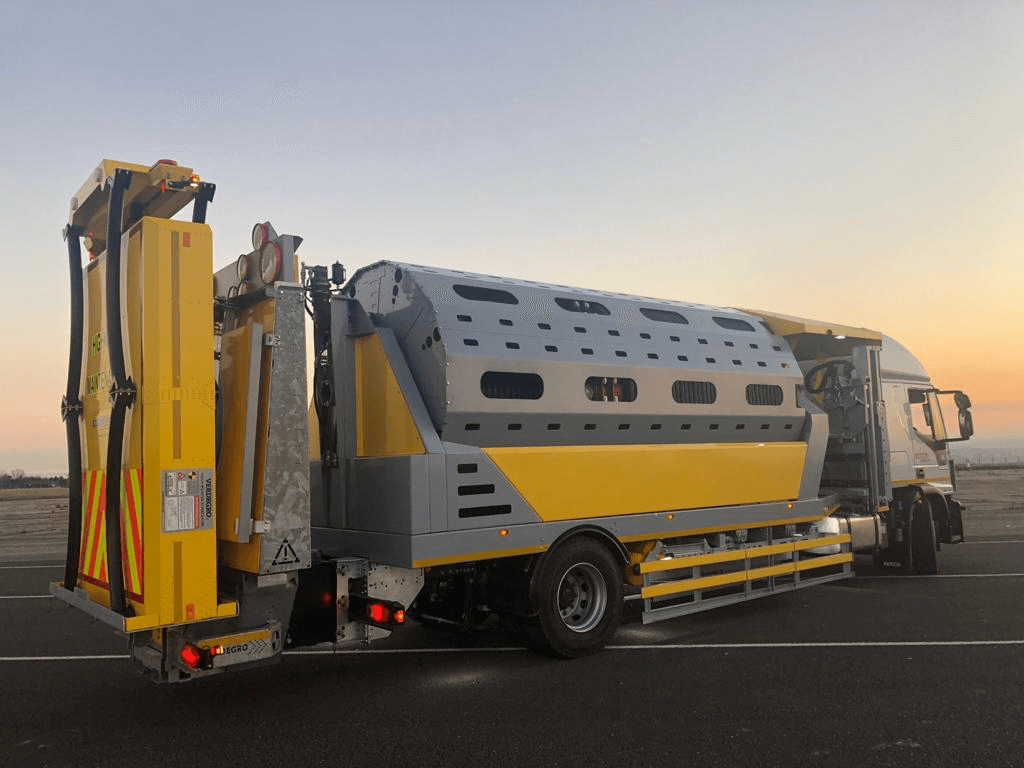

The cone storage of the Verdegro Autocone 2.0 (AC) is crafted from high-resistance steel profiles and aluminum plates, featuring a barrel-type design that attaches securely to the sub-frame. This compartment accommodates 400 cones distributed across 8 columns, with each column holding 50 cones. A hydraulic motor drives the cone feeding mechanism, rotating cones horizontally via a spiral mechanism. The fully enclosed design of the storage compartment ensures cones remain clean and functional, protecting all moving components for reliable operation.
CONE PICKING & PLACING CHAMBER
The cone picking & placing chamber of the Verdegro Autocone 2.0 is positioned at the front of the storage area, featuring a semi-closed structure with an overhead rain cover. A drag and swipe system is installed in front of the rotating barrel compartment, with lifts mounted on each side (left/right). This fully hydraulic-operated system allows independent operation for various tasks, such as pulling out or pushing back rows of cones and horizontally moving cones to position them left or right on each side. Electronic and optical sensors indicate when cones are properly positioned.
CONE CATCHING CLAMP
The cone catching clamp on the Verdegro Autocone 2.0 includes a set on each side, situated on lifts for both left and right sides. These clamps utilize a two-piece steel plate hinge structure and are operated by hydraulic cylinders. This mechanism allows for quick and efficient gripping or releasing of cones as needed during operations.
GUIDING RAILS
The guiding rails on the Verdegro Autocone 2.0 consist of one set on each side (left/right), constructed from high-resistance steel profiles and plates. These rails are positioned within the axles and can be extended or retracted using hydraulic mechanisms. They have been meticulously designed and rigorously tested by Verdegro to ensure reliable operation in various conditions.
OPTIONAL
- Can be installed on standard 18T truck chassis of any requested brand.
- Features air suspension for enhanced stability and maneuverability.
MOBITRACK
Mobitrack can be integrated into your products, providing accurate and real-time location data. It keeps a detailed record of past locations, allowing you to see where your products have been. Mobitrack is simple to integrate into both new and existing products.
Statistics show that many accidents still occur involving road users and workers. To enhance the safety of both drivers and workers, Mobitrack can be configured to work with safety alert systems. This integration allows it to send alerts to drivers, warning them of nearby workers and significantly increasing safety.
Mobitrack is automatically integrated with a wide range of safety alert systems, including Google, Waze, Flitsmeister, Monotch, and your country’s traffic control system. We are the only manufacturer with such extensive integration across various safety alert platforms.
Additionally, the advanced implementation of the Mobitrack module allows you to request detailed information about your products, ensuring you have all the necessary data at your disposal.
MOBITRACK – SIMPLE
- Track your products’ locations accurately in real-time.
- Keeps a location history of where your products have been.
- Easily integrates with any product.
- Display your product in the Mobilityplanner platform for easy access.
- Integration with safety alert systems to improve safety and send warnings.
Request additional information from your products: arrow left/right, cushion down/up, lights on/off etc.
MOBITRACK – ADVANCED
- Track your products’ locations accurately in real-time.
- Keeps a location history of where your products have been.
- Easily integrates with any product.
- Display your product in the Mobilityplanner platform for easy access.
- Integration with safety alert systems to improve safety and send warnings.
- Request additional information from your products: arrow left/right, cushion down/up, lights on/off etc.
