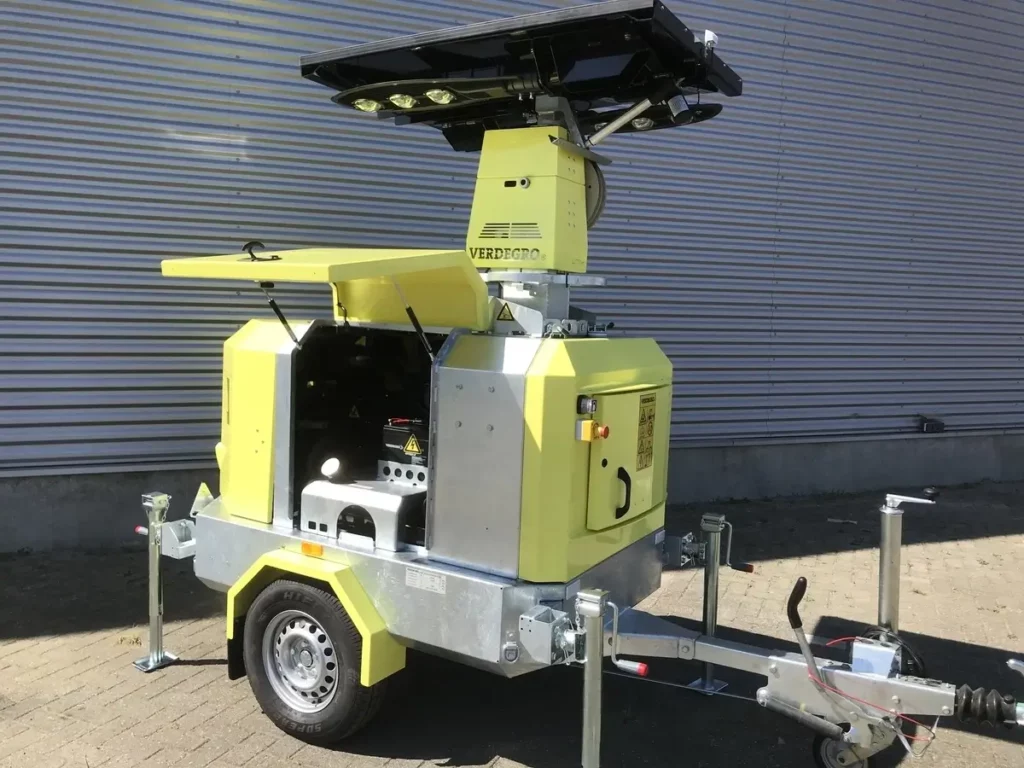

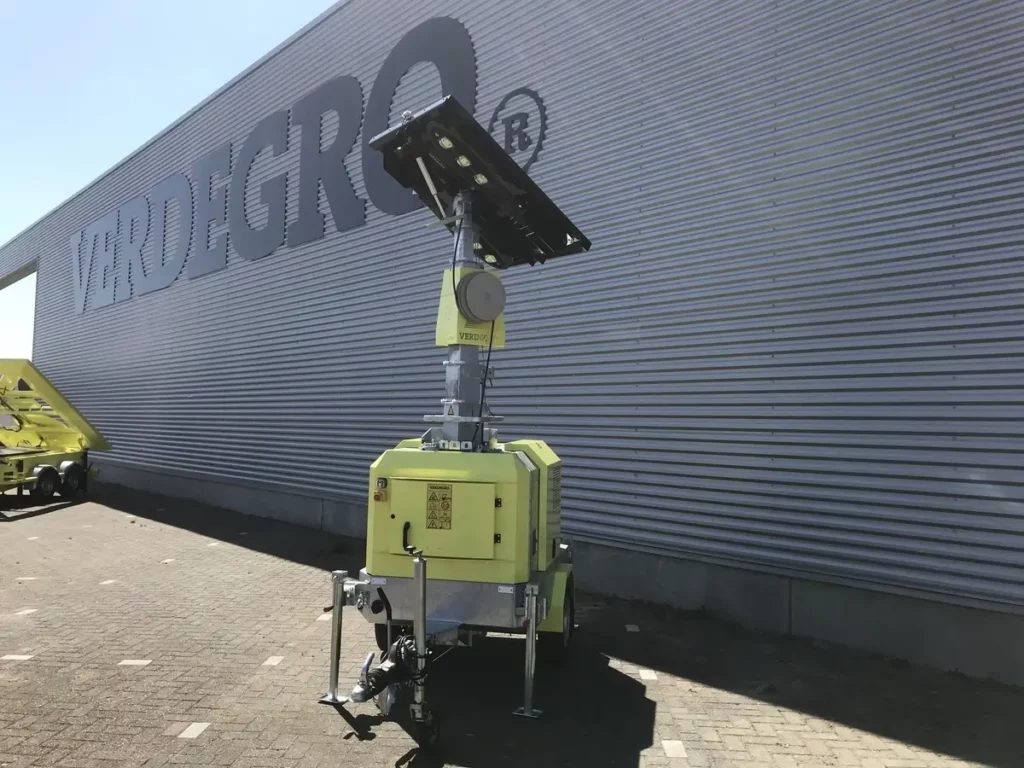

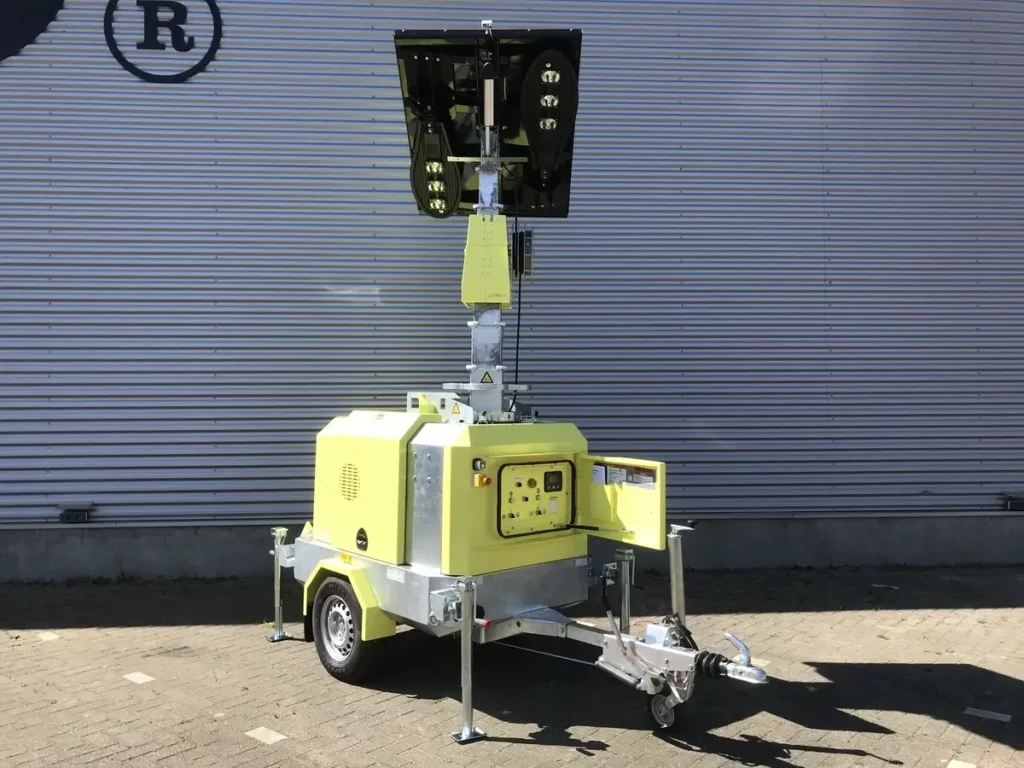

LED Light Tower Trailer-Hybrid XL
The Verdegro LED Light Tower Trailer Hybrid XL (LLTT-H XL) is equipped with a 400Ah battery bank, charged by a solar power system and a 24V DC generator. The unit features a standard mast height of 9m (29.5ft) and comes with six 100W LED floodlights, with an optional upgrade to eight floodlights. Custom specifications are available upon request.
VERDEGRO
led light tower trailer-hybrid XL
UNIQUE SELLING POINTS
- Hybrid power: solar + 24V DC generator
- High-capacity 400Ah battery bank
- 100W LED floodlights with 17,000 lumens
- Customizable setup: 6 or 8 lights
- Hydraulic winch with 9m mast
- Long runtime: 65-70 days
- Optional geo-fencing via 4G interface
- Low fuel consumption: 0.4 L/H

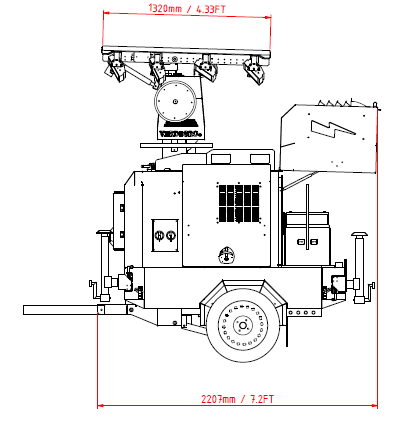

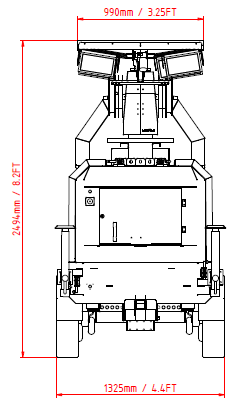

DIMENSIONS AND WEIGHT
- Minimum dimensions: 1330mm x 1150mm x 2180mm
- Maximum dimensions: 2806mm x 2626mm x 8730mm
- Total weight without fuel: 1090 kg (2400 lbs)
FEATURES
- 100W LED floodlight with 17,000 effective lumens
- Standard equipped with 6 to 8 lights
- Photocell daylight sensor (automatic/on/off)
- Spiral cable
- Optional geo-fencing via DSE web interface 4G

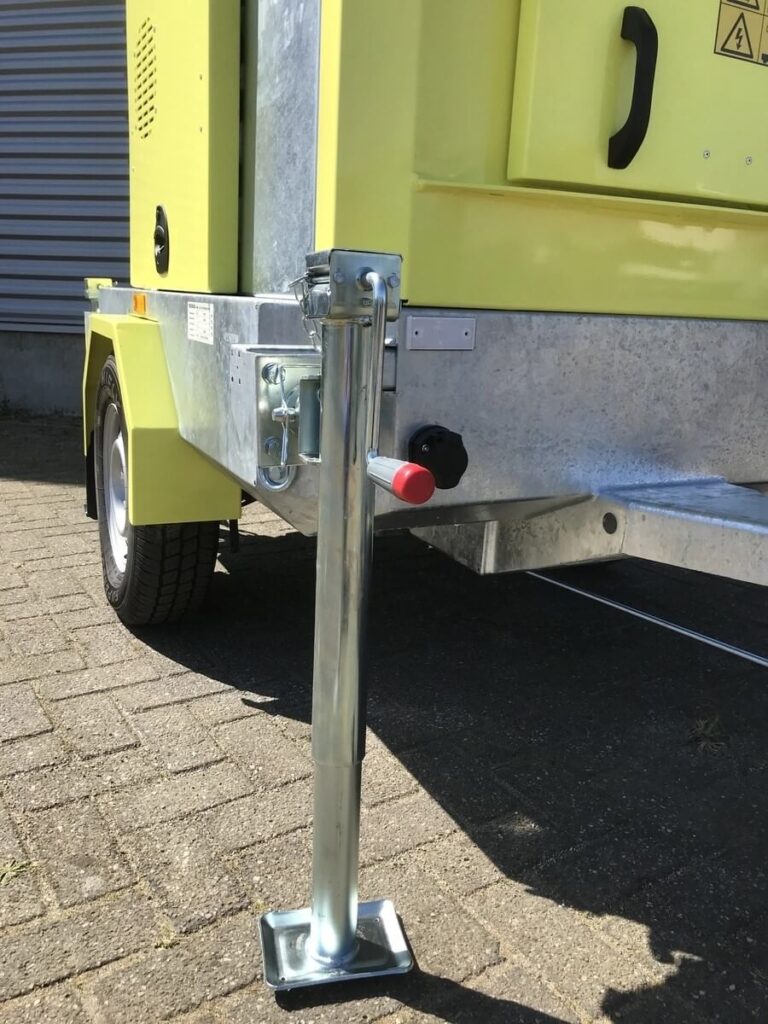

- Two front and two back outriggers with leveling jacks
- Torsion rubber suspension axle
- Information LED backlight controller screen
- Forklift sprockets on top and below chassis

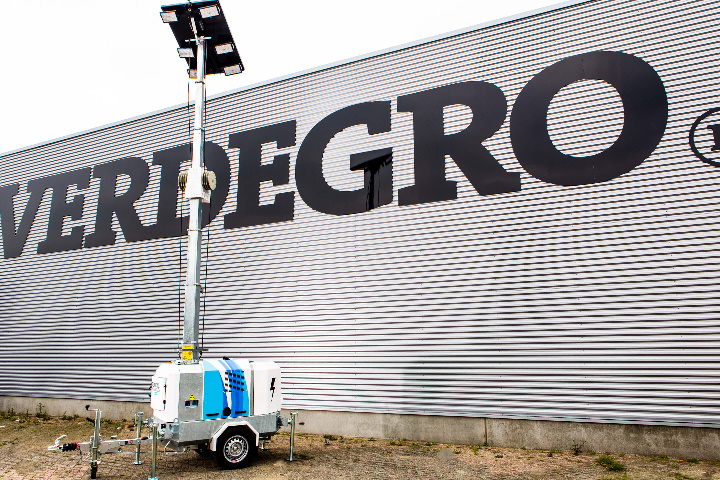

LIFTING SYSTEM
- Hydraulic winch, automatic

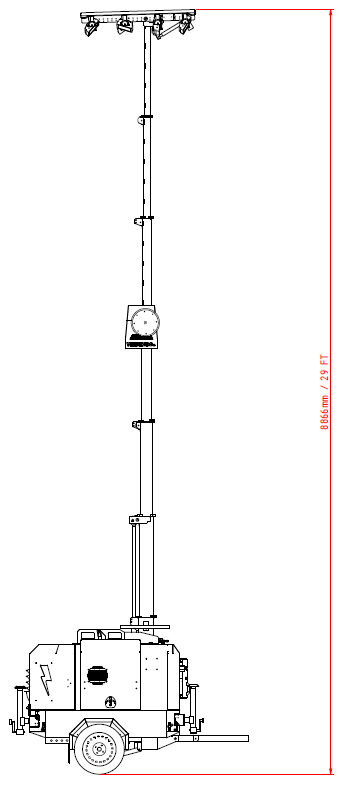

- Extends to 9m high
- Withstands maximum wind speed of 110 km/h
ENGINE
- Kubota Z482 Tier 4
- Diesel / HVO100
- Tank capacity: 270L / 71 gallons (115% liquid spill containment)
- Consumption: 0.4 L/H (0.1 gal/H)
- Noise level at 7m: 65 dBA
- Standalone runtime: 65-70 days, depending on light output
- Engine speed: 3200 RPM (2 cylinders)
- Liquid cooling system

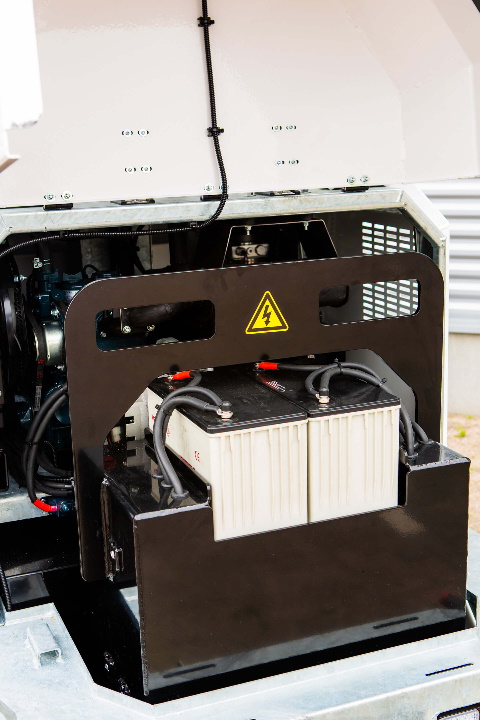

BATTERY BANK
- Long-life gel AGM battery bank: 400Ah, 24V DC

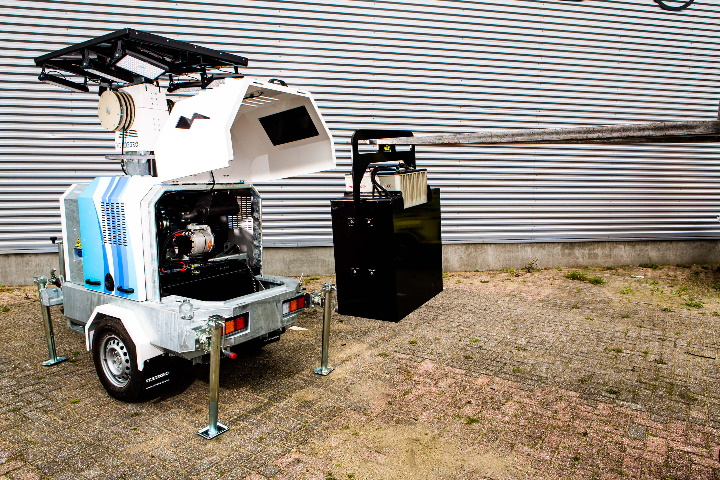

- Replaceable battery bank
SOLAR SYSTEM
- Standard solar system: 200Wp
- Solar charger: 20A
