RAIN-Trailer (VD2-170 RAIN)

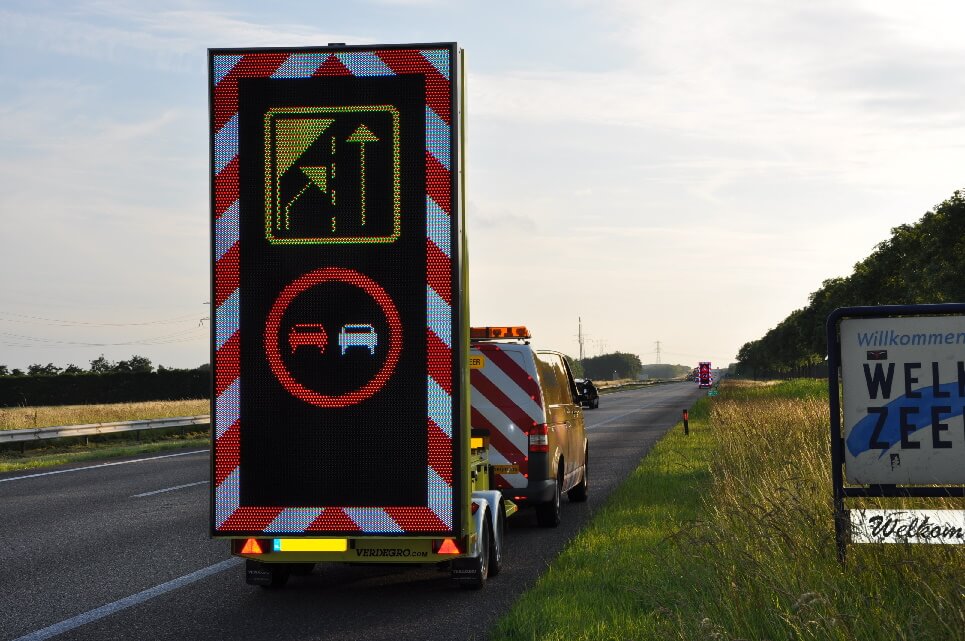

Introducing the Rain Trailer (VD2-170 RAIN), a compact and versatile solution equipped with a high-resolution LED display for dynamic messaging. Ideal for mobile applications, it features robust construction, advanced hydraulic deployment, and optional solar power integration. Perfect for enhancing traffic management with remote programmability and reliable performance in various weather conditions.
OPTIONAL
- Touchscreen computer mounted inside the trailer cabinet
- Rotatable frame (horizontal)
- Hybrid model
- Diesel model
TECHNICAL SPECIFICATIONS (SYSTEM AND GENERAL)
Construction & Design
- Narrow trailer design with a total width of 1700 mm for use on emergency lanes
- Completely closed trailer design Trailer weight: approx. 1800 kg / 3968 lbs
- Equipped with two torsion spring axles, each rated at 1350 kg / 2976 lbs
- All hatches are easy to open and equipped with reliable locks and gas pressure springs
- The front cabinet is lockable with a turnkey lock
- The chassis is fully galvanised, and aluminium components are coated in any desired RAL colour
Display & LED System
- Energy-efficient full-colour and full-matrix LED display with 80 × 160 pixels and a 20 mm pixel pitch, compliant with EN12966
- Integrated pixel failure detection system
- Equipped with a unique, easily interchangeable large LED tile
Hydraulic System
- Fully hydraulic trailer featuring hydraulic outriggers and display locking for fast deployment
- The power pack is mounted inside the trailer cabinet
Power Supply & Battery System
- AGM battery pack providing 400 Ah at 24 Vdc, completely maintenance-free and leak-proof
- Industrial battery charger with built-in wall socket output
Lighting & Electrical System
- Approved multi-voltage LED driving lights suitable for 12 Vdc or 24 Vdc
Communication & Control
- 4G modem including software for remote programming and operation via the user-friendly, free Verdegro portal: www.mobilityplanner.com (excluding mandatory monthly data plan and SIM card with VPN connection)
THE VD2-170 RAIN IS ALSO AVAILABLE AS
Hybrid Model
- The hybrid version features a fully integrated diesel generator combined with a solar power system built into the lockable shutters. It includes a Kubota Z482 two-cylinder water-cooled diesel engine with a DC generator and an extra-large 250-litre diesel tank integrated into the trailer chassis.
Diesel Model
- The diesel version is powered solely by a Kubota Z482 two-cylinder water-cooled diesel engine with a DC generator. It also includes an extra-large 250-litre diesel tank integrated into the trailer chassis.
Note
- Only the Diesel and Hybrid versions are suitable for continuous operation. The Solar version (standard model) must be recharged regularly using a grid-connected battery charger.
Mobitrack
Mobitrack can be integrated into your products, providing accurate and real-time location data. It keeps a detailed record of past locations, allowing you to see where your products have been. Mobitrack is simple to integrate into both new and existing products.
Statistics show that many accidents still occur involving road users and workers. To enhance the safety of both drivers and workers, Mobitrack can be configured to work with safety alert systems. This integration allows it to send alerts to drivers, warning them of nearby workers and significantly increasing safety.
Mobitrack is automatically integrated with a wide range of safety alert systems, including Google, Waze, Flitsmeister, Monotch, and your country’s traffic control system. We are the only manufacturer with such extensive integration across various safety alert platforms.
Additionally, the advanced implementation of the Mobitrack module allows you to request detailed information about your products, ensuring you have all the necessary data at your disposal.
Mobitrack – Basic
- Track your products’ locations accurately in real-time.
- Keeps a location history of where your products have been.
- Easily integrates with any product.
- Display your product in Mobilityplanner.com for easy access.
- Integration with safety alert systems to improve safety and send warnings.
Request additional information from your products: arrow left/right, cushion down/up, lights on/off etc.
Mobitrack – Advanced
- Track your products’ locations accurately in real-time.
- Keeps a location history of where your products have been.
- Easily integrates with any product.
- Display your product in Mobilityplanner.com for easy access.
- Integration with safety alert systems to improve safety and send warnings.
- Request additional information from your products: arrow left/right, cushion down/up, lights on/off etc.
